🌿 DeepMaxent Tutorial: Species Distribution Modeling

Introduction

Welcome to this tutorial on DeepMaxent, a deep learning approach for Species Distribution Modeling (SDM). In this notebook, we will:

1. Load and explore biodiversity occurrence data from GBIF
2. Visualize species occurrences on interactive maps
3. Process environmental rasters (WorldClim bioclimatic variables)
4. Prepare training data by aggregating occurrences at raster resolution
5. Build input tensors ready for the DeepMaxent model

This tutorial focuses on plant species observations from Costa Rica 🇨🇷.

---

1. 📦 Import Libraries

We need several libraries for this tutorial: - pandas/numpy: Data manipulation - rasterio: Reading and processing raster files - matplotlib/cartopy: Creating beautiful maps - torch: Building tensors for deep learning - sklearn: Data preprocessing

# Suppress warnings
import warnings
warnings.filterwarnings('ignore')

# Core libraries
import numpy as np
import pandas as pd
import os
from tqdm import tqdm

# Geospatial libraries
import rasterio
from rasterio.windows import from_bounds
from rasterio.plot import show

# Machine Learning
import torch
from sklearn.preprocessing import StandardScaler

# Visualization
import matplotlib.pyplot as plt
import matplotlib.colors as mcolors
from matplotlib.colors import LinearSegmentedColormap
import cartopy.crs as ccrs
import cartopy.feature as cfeature

# DeepMaxent libraries
from librairies.model import deepmaxent_model
from librairies.losses import deepmaxent_loss
from librairies.utils import set_seed

# Set random seed for reproducibility
set_seed(42)

# Plotting style
plt.style.use('seaborn-v0_8-whitegrid')
plt.rcParams['figure.figsize'] = (12, 8)
plt.rcParams['font.size'] = 11
plt.rcParams['axes.titlesize'] = 14
plt.rcParams['axes.labelsize'] = 12

print("✅ All libraries loaded successfully!")

✅ All libraries loaded successfully!

2. 🦜 Load Biodiversity Data

We’ll load occurrence data from the Global Biodiversity Information Facility (GBIF). This dataset contains species observations with their geographic coordinates, taxonomy, and observation metadata.

# Load the biodiversity dataset
df = pd.read_csv('data/tutorial/biodiversity_data.csv', sep='\t', low_memory=False)

print(f"📊 Dataset shape: {df.shape[0]:,} observations × {df.shape[1]} columns")
print(f"\n🔤 Available columns:\n{df.columns.tolist()[:15]}...")

# Display first few rows
df.head(3)

📊 Dataset shape: 26,670 observations × 50 columns

🔤 Available columns:
['gbifID', 'datasetKey', 'occurrenceID', 'kingdom', 'phylum', 'class', 'order', 'family', 'genus', 'species', 'infraspecificEpithet', 'taxonRank', 'scientificName', 'verbatimScientificName', 'verbatimScientificNameAuthorship']...

	gbifID	datasetKey	occurrenceID	kingdom	phylum	class	order	family	genus	species	…	identifiedBy	dateIdentified	license	rightsHolder	recordedBy	typeStatus	establishmentMeans	lastInterpreted	mediaType	issue
0	991957019	9661bc40-f762-11e1-a439-00145eb45e9a	NaN	Animalia	Chordata	Squamata	NaN	Colubridae	Trimetopon	Trimetopon simile	…	NaN	NaN	CC_BY_4_0	NaN	NaN	NaN	NaN	2025-08-13T06:26:51.213Z	NaN	COORDINATE_ROUNDED;GEODETIC_DATUM_ASSUMED_WGS8…
1	991940453	9661bc40-f762-11e1-a439-00145eb45e9a	NaN	Animalia	Chordata	Amphibia	Anura	Eleutherodactylidae	Eleutherodactylus	Eleutherodactylus rhodesi	…	NaN	NaN	CC_BY_4_0	NaN	NaN	NaN	NaN	2025-08-13T06:26:57.208Z	NaN	COORDINATE_ROUNDED;GEODETIC_DATUM_ASSUMED_WGS8…
2	991853602	9661bc40-f762-11e1-a439-00145eb45e9a	NaN	Animalia	Chordata	Amphibia	Anura	Phyllomedusidae	Agalychnis	Agalychnis lemur	…	NaN	NaN	CC_BY_4_0	NaN	NaN	NaN	NaN	2025-08-13T06:26:38.847Z	NaN	COORDINATE_ROUNDED;GEODETIC_DATUM_ASSUMED_WGS8…

3 rows × 50 columns

3. 🔍 Data Exploration & Visualization

Let’s explore the dataset to understand what kind of data we have:

# Clean coordinates and filter valid data
df['decimalLatitude'] = pd.to_numeric(df['decimalLatitude'], errors='coerce')
df['decimalLongitude'] = pd.to_numeric(df['decimalLongitude'], errors='coerce')

# Remove rows with missing coordinates or species
df_clean = df.dropna(subset=['decimalLatitude', 'decimalLongitude', 'species'])

print(f"📍 Valid observations with coordinates: {len(df_clean):,}")
print(f"\n📈 Distribution by Kingdom:")
print(df_clean['kingdom'].value_counts())

print(f"\n📋 Observation types:")
print(df_clean['basisOfRecord'].value_counts())

📍 Valid observations with coordinates: 26,670

📈 Distribution by Kingdom:
kingdom
Animalia    15351
Plantae     11313
Fungi           6
Name: count, dtype: int64

📋 Observation types:
basisOfRecord
HUMAN_OBSERVATION      13645
PRESERVED_SPECIMEN     12712
MATERIAL_CITATION        224
MACHINE_OBSERVATION       50
OCCURRENCE                35
LIVING_SPECIMEN            2
MATERIAL_SAMPLE            2
Name: count, dtype: int64

# Filter for plant observations only (human observations are most reliable)
df_filtered = df_clean[
    (df_clean['kingdom'] == 'Plantae') &
    (df_clean['basisOfRecord'] == 'HUMAN_OBSERVATION')
].copy()

print(f"🌿 Plant observations (human observations): {len(df_filtered):,}")
print(f"🌱 Number of unique species: {df_filtered['species'].nunique():,}")

🌿 Plant observations (human observations): 1,145
🌱 Number of unique species: 102

# Summary statistics of filtered data
print("📊 Dataset Summary")
print("=" * 50)
print(f"Total observations: {len(df_filtered):,}")
print(f"Unique species: {df_filtered['species'].nunique():,}")
print(f"Unique locations: {df_filtered.groupby(['decimalLongitude', 'decimalLatitude']).ngroups:,}")
print(f"\n📍 Geographic extent:")
print(f"   Longitude: [{df_filtered['decimalLongitude'].min():.3f}, {df_filtered['decimalLongitude'].max():.3f}]")
print(f"   Latitude:  [{df_filtered['decimalLatitude'].min():.3f}, {df_filtered['decimalLatitude'].max():.3f}]")
print(f"\n📅 Year range: {int(df_filtered['year'].min())} - {int(df_filtered['year'].max())}")

📊 Dataset Summary
==================================================
Total observations: 1,145
Unique species: 102
Unique locations: 1,040

📍 Geographic extent:
   Longitude: [-85.917, -82.630]
   Latitude:  [8.234, 11.189]

📅 Year range: 1989 - 2025

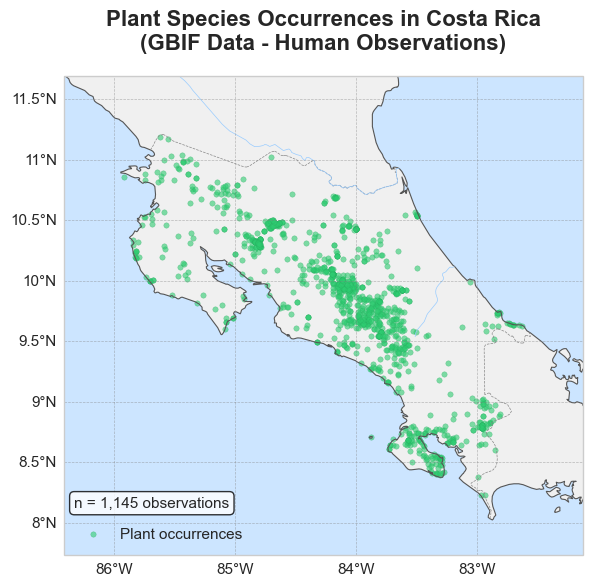

3.1 🗺️ Map of Species Occurrences

Let’s visualize where the species observations are located. This is crucial to understand the spatial distribution of our data and identify potential sampling biases.

# Create a beautiful map showing all occurrences
fig = plt.figure(figsize=(8, 6))
ax = fig.add_subplot(1, 1, 1, projection=ccrs.PlateCarree())

# Define map extent with padding
padding = 0.5
extent = [
    df_filtered['decimalLongitude'].min() - padding,
    df_filtered['decimalLongitude'].max() + padding,
    df_filtered['decimalLatitude'].min() - padding,
    df_filtered['decimalLatitude'].max() + padding
]
ax.set_extent(extent, crs=ccrs.PlateCarree())

# Add map features
ax.add_feature(cfeature.LAND, facecolor='#f0f0f0', edgecolor='none')
ax.add_feature(cfeature.OCEAN, facecolor='#cce5ff')
ax.add_feature(cfeature.COASTLINE, linewidth=0.8, edgecolor='#555555')
ax.add_feature(cfeature.BORDERS, linestyle='--', linewidth=0.5, edgecolor='#888888')
ax.add_feature(cfeature.RIVERS, linewidth=0.5, edgecolor='#99ccff')

# Plot occurrence points
scatter = ax.scatter(
    df_filtered['decimalLongitude'],
    df_filtered['decimalLatitude'],
    c='#2ecc71',
    s=15,
    alpha=0.6,
    edgecolor='#27ae60',
    linewidth=0.3,
    transform=ccrs.PlateCarree(),
    label='Plant occurrences'
)

# Add gridlines
gl = ax.gridlines(draw_labels=True, linewidth=0.5, color='gray', alpha=0.5, linestyle='--')
gl.top_labels = False
gl.right_labels = False

# Title and legend
ax.set_title('Plant Species Occurrences in Costa Rica\n(GBIF Data - Human Observations)',
             fontsize=16, fontweight='bold', pad=20)
ax.legend(loc='lower left', fontsize=11)

# Add observation count annotation
ax.text(0.02, 0.1, f'n = {len(df_filtered):,} observations',
        transform=ax.transAxes, fontsize=11,
        bbox=dict(boxstyle='round', facecolor='white', alpha=0.8))

plt.tight_layout()
plt.show()

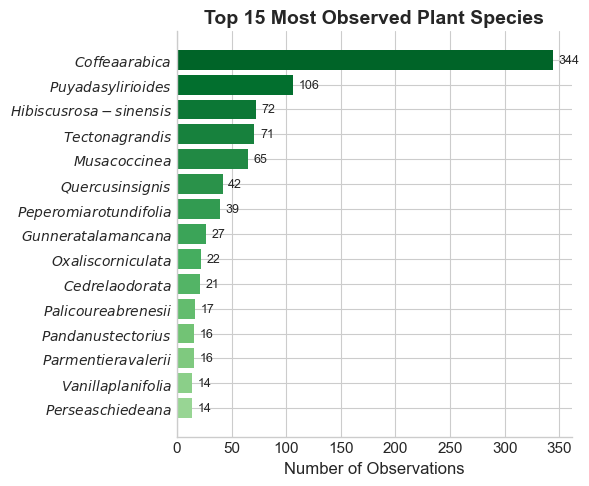

3.2 📊 Top Species Distribution

Let’s look at the most frequently observed species in our dataset:

# Top 15 most observed species
top_species = df_filtered['species'].value_counts().head(15)

fig, ax = plt.subplots(figsize=(6, 5))

# Create horizontal bar chart
colors_gradient = plt.cm.Greens(np.linspace(0.4, 0.9, len(top_species)))[::-1]
bars = ax.barh(range(len(top_species)), top_species.values, color=colors_gradient)

# Customize
ax.set_yticks(range(len(top_species)))
ax.set_yticklabels([f'$\it{{{s}}}$' for s in top_species.index], fontsize=10)  # Italic for species names
ax.invert_yaxis()
ax.set_xlabel('Number of Observations', fontsize=12)
ax.set_title('Top 15 Most Observed Plant Species', fontsize=14, fontweight='bold')

# Add value labels
for i, (bar, val) in enumerate(zip(bars, top_species.values)):
    ax.text(val + 5, i, f'{val:,}', va='center', fontsize=9)

ax.spines['top'].set_visible(False)
ax.spines['right'].set_visible(False)

plt.tight_layout()
plt.show()

print(f" Distribution summary:")
print(f"   Most observed species: {top_species.index[0]} ({top_species.values[0]:,} obs)")
print(f"   Median obs per species: {df_filtered['species'].value_counts().median():.0f}")

 Distribution summary:
   Most observed species: Coffea arabica (344 obs)
   Median obs per species: 2

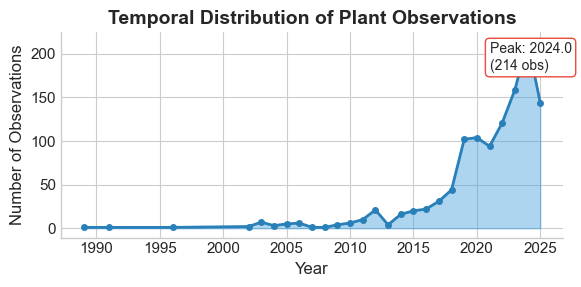

3.3 📅 Temporal Distribution of Observations

Understanding when observations were made helps identify temporal sampling bias:

# Temporal distribution
year_counts = df_filtered['year'].value_counts().sort_index()

fig, ax = plt.subplots(figsize=(6, 3))

ax.fill_between(year_counts.index, year_counts.values, alpha=0.4, color='#3498db')
ax.plot(year_counts.index, year_counts.values, color='#2980b9', linewidth=2, marker='o', markersize=4)

ax.set_xlabel('Year', fontsize=12)
ax.set_ylabel('Number of Observations', fontsize=12)
ax.set_title('Temporal Distribution of Plant Observations', fontsize=14, fontweight='bold')

ax.spines['top'].set_visible(False)
ax.spines['right'].set_visible(False)

# Highlight peak year
peak_year = year_counts.idxmax()
peak_count = year_counts.max()
ax.annotate(f'Peak: {peak_year}\n({peak_count:,} obs)',
            xy=(peak_year, peak_count),
            xytext=(peak_year-3, peak_count*0.85),
            fontsize=10,
            arrowprops=dict(arrowstyle='->', color='#e74c3c'),
            bbox=dict(boxstyle='round', facecolor='white', edgecolor='#e74c3c'))

plt.tight_layout()
plt.show()

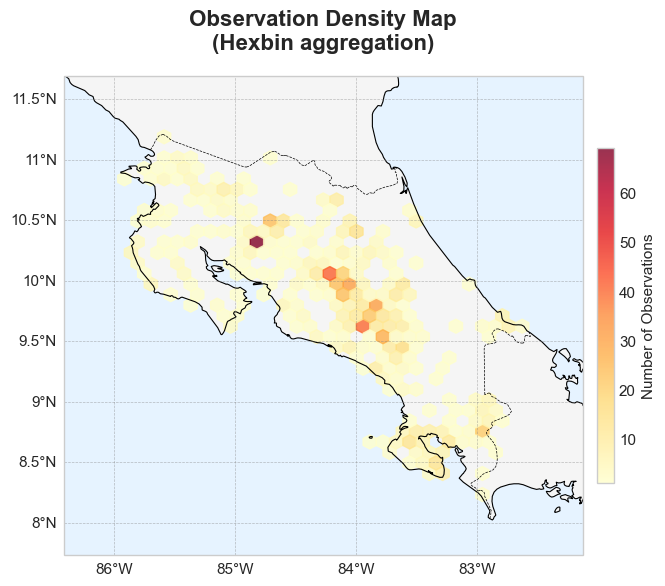

3.4 🔥 Observation Density Heatmap

A density map helps identify areas with high sampling effort:

# Create density heatmap
fig = plt.figure(figsize=(8, 6))
ax = fig.add_subplot(1, 1, 1, projection=ccrs.PlateCarree())

# Define map extent
padding = 0.5
extent = [
    df_filtered['decimalLongitude'].min() - padding,
    df_filtered['decimalLongitude'].max() + padding,
    df_filtered['decimalLatitude'].min() - padding,
    df_filtered['decimalLatitude'].max() + padding
]
ax.set_extent(extent, crs=ccrs.PlateCarree())

# Add map features
ax.add_feature(cfeature.LAND, facecolor='#f5f5f5', edgecolor='none')
ax.add_feature(cfeature.OCEAN, facecolor='#e6f3ff')
ax.add_feature(cfeature.COASTLINE, linewidth=0.8)
ax.add_feature(cfeature.BORDERS, linestyle='--', linewidth=0.5)

# Create hexbin density plot
hb = ax.hexbin(
    df_filtered['decimalLongitude'],
    df_filtered['decimalLatitude'],
    gridsize=30,
    cmap='YlOrRd',
    mincnt=1,
    transform=ccrs.PlateCarree(),
    alpha=0.8
)

# Add colorbar
cbar = plt.colorbar(hb, ax=ax, shrink=0.7, pad=0.02)
cbar.set_label('Number of Observations', fontsize=11)

# Gridlines
gl = ax.gridlines(draw_labels=True, linewidth=0.5, color='gray', alpha=0.5, linestyle='--')
gl.top_labels = False
gl.right_labels = False

ax.set_title('Observation Density Map\n(Hexbin aggregation)', fontsize=16, fontweight='bold', pad=20)

plt.tight_layout()
plt.show()

4. 🗺️ Crop Environmental Rasters

Now we need to prepare our environmental data. We’re using WorldClim bioclimatic variables at 10 arc-minutes resolution (~18.5 km at the equator).

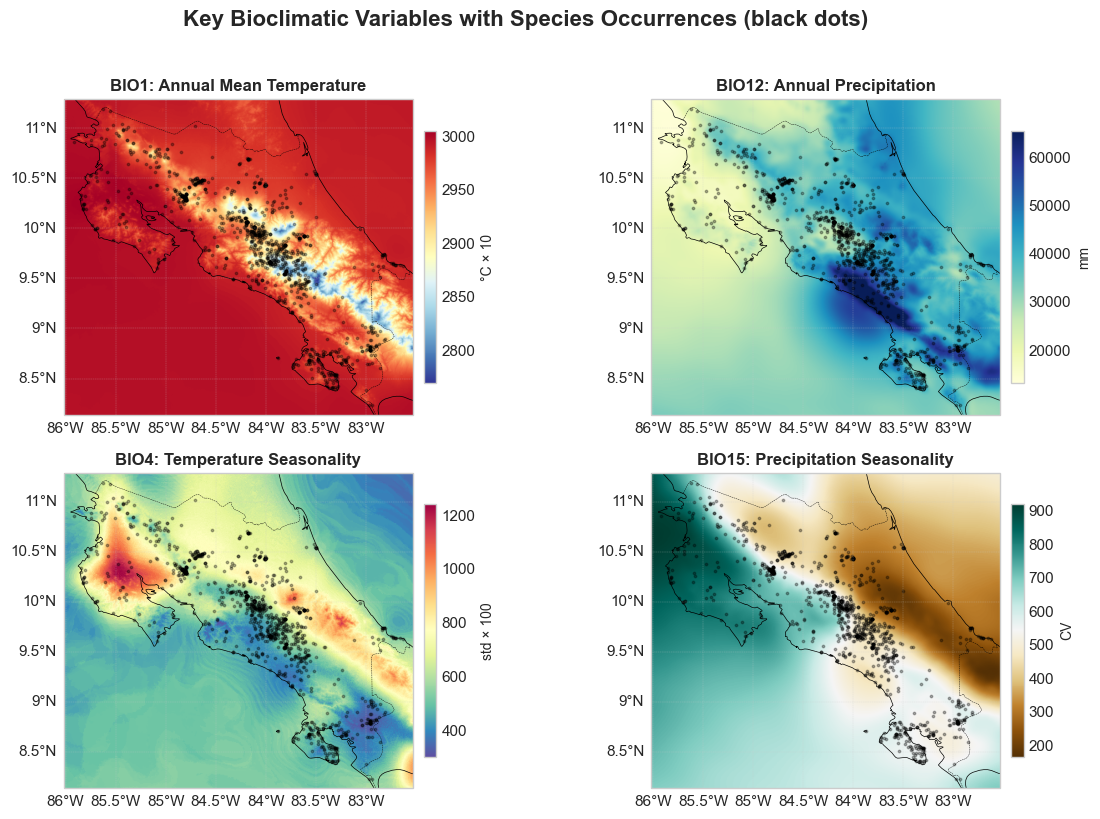

These 19 bioclimatic variables are derived from temperature and precipitation data:

Variable	Description
BIO1	Annual Mean Temperature
BIO2	Mean Diurnal Range
BIO3	Isothermality
BIO4	Temperature Seasonality
BIO5-6	Max/Min Temperature
BIO7	Temperature Annual Range
BIO8-11	Temperature of Wettest/Driest/Warmest/Coldest Quarter
BIO12	Annual Precipitation
BIO13-14	Precipitation of Wettest/Driest Month
BIO15	Precipitation Seasonality
BIO16-19	Precipitation of Wettest/Driest/Warmest/Coldest Quarter

We’ll crop these global rasters to our study area extent.

# Define study area extent based on occurrence data
buffer = 0.1  # Small buffer around occurrences

min_longitude = df_filtered['decimalLongitude'].min() - buffer
max_longitude = df_filtered['decimalLongitude'].max() + buffer
min_latitude = df_filtered['decimalLatitude'].min() - buffer
max_latitude = df_filtered['decimalLatitude'].max() + buffer

print("📍 Study Area Extent:")
print(f"   Longitude: [{min_longitude:.4f}, {max_longitude:.4f}]")
print(f"   Latitude:  [{min_latitude:.4f}, {max_latitude:.4f}]")
print(f"   Area span: {max_longitude - min_longitude:.2f}° × {max_latitude - min_latitude:.2f}°")

# Setup folders
input_folder = 'data/tutorial/rasters'
# input_folder = 'E:/chelsa_data/historical_1981-2010'
output_folder = 'data/tutorial/cropped_rasters'
os.makedirs(output_folder, exist_ok=True)

# List available rasters
raster_files = sorted([f for f in os.listdir(input_folder) if f.endswith('.tif')])
print(f"\n📂 Found {len(raster_files)} raster files to crop")

📍 Study Area Extent:
   Longitude: [-86.0172, -82.5302]
   Latitude:  [8.1340, 11.2894]
   Area span: 3.49° × 3.16°

📂 Found 19 raster files to crop

# Crop all rasters to the study extent
print("✂️ Cropping rasters to study area...")

for filename in tqdm(raster_files, desc="Processing"):
    input_path = os.path.join(input_folder, filename)
    output_path = os.path.join(output_folder, filename)

    with rasterio.open(input_path) as src:
        # Get the window for our extent
        window = from_bounds(
            min_longitude, min_latitude,
            max_longitude, max_latitude,
            transform=src.transform
        )

        # Read cropped data
        data = src.read(window=window)

        # Update metadata
        meta = src.meta.copy()
        meta.update({
            'height': int(window.height),
            'width': int(window.width),
            'transform': rasterio.windows.transform(window, src.transform)
        })

        # Write cropped raster
        if window.height > 0 and window.width > 0:
            with rasterio.open(output_path, 'w', **meta) as dst:
                dst.write(data)

print(f"\n✅ Successfully cropped {len(raster_files)} rasters!")

# Check the cropped raster dimensions
with rasterio.open(os.path.join(output_folder, raster_files[0])) as src:
    print(f"\n📐 Cropped raster dimensions: {src.width} × {src.height} pixels")
    print(f"   Resolution: {abs(src.transform[0]):.4f}° (~{abs(src.transform[0]) * 111:.1f} km)")

✂️ Cropping rasters to study area...

Processing: 100%|██████████| 19/19 [00:02<00:00,  7.82it/s]


✅ Successfully cropped 19 rasters!

📐 Cropped raster dimensions: 418 × 378 pixels
   Resolution: 0.0083° (~0.9 km)

5. 🌡️ Visualize Environmental Variables

Let’s visualize some key bioclimatic variables along with our occurrence data:

# Select key variables to visualize
variables_to_plot = [
    ('CHELSA_bio1_1981-2010_V.2.1.tif', 'BIO1: Annual Mean Temperature', '°C × 10', 'RdYlBu_r'),
    ('CHELSA_bio12_1981-2010_V.2.1.tif', 'BIO12: Annual Precipitation', 'mm', 'YlGnBu'),
    ('CHELSA_bio4_1981-2010_V.2.1.tif', 'BIO4: Temperature Seasonality', 'std × 100', 'Spectral_r'),
    ('CHELSA_bio15_1981-2010_V.2.1.tif', 'BIO15: Precipitation Seasonality', 'CV', 'BrBG')
]

fig, axes = plt.subplots(2, 2, figsize=(12, 8), subplot_kw={'projection': ccrs.PlateCarree()})
axes = axes.flatten()

for ax, (filename, title, unit, cmap) in zip(axes, variables_to_plot):
    filepath = os.path.join(output_folder, filename)

    with rasterio.open(filepath) as src:
        data = src.read(1).astype(np.float32)
        extent_raster = [src.bounds.left, src.bounds.right, src.bounds.bottom, src.bounds.top]
        nodata = src.nodata

        # Mask nodata values and any extreme values that could cause overflow
        if nodata is not None:
            data = np.ma.masked_where(
                (data == nodata) | (np.abs(data) > 1e10) | ~np.isfinite(data),
                data
            )
        else:
            data = np.ma.masked_where((np.abs(data) > 1e10) | ~np.isfinite(data), data)

    # Add features
    ax.add_feature(cfeature.COASTLINE, linewidth=0.5)
    ax.add_feature(cfeature.BORDERS, linestyle='--', linewidth=0.3)

    # Plot raster
    im = ax.imshow(data, extent=extent_raster, origin='upper', cmap=cmap,
                   transform=ccrs.PlateCarree())

    # Overlay occurrences
    ax.scatter(df_filtered['decimalLongitude'], df_filtered['decimalLatitude'],
               c='black', s=3, alpha=0.3, transform=ccrs.PlateCarree())

    # Colorbar
    cbar = plt.colorbar(im, ax=ax, shrink=0.8, pad=0.02)
    cbar.set_label(unit, fontsize=10)

    # Gridlines
    gl = ax.gridlines(draw_labels=True, linewidth=0.3, alpha=0.5, linestyle='--')
    gl.top_labels = False
    gl.right_labels = False

    ax.set_title(title, fontsize=12, fontweight='bold')

plt.suptitle('Key Bioclimatic Variables with Species Occurrences (black dots)',
             fontsize=16, fontweight='bold', y=1.02)
plt.tight_layout()
plt.show()

6. 📊 Prepare Training Data

Now we’ll prepare the data for DeepMaxent by:

1. Extracting environmental values at each occurrence location
2. Aggregating occurrences by raster cell (multiple observations at the same location)
3. Building the occurrence count matrix (y) where each entry represents the number of observations per species per location

6.1 Extract Environmental Values at Occurrence Points

# Get the raster resolution info
rasters_dir = 'data/tutorial/cropped_rasters/'
raster_files = sorted([f for f in os.listdir(rasters_dir) if f.endswith('.tif')])

# Get raster properties
with rasterio.open(os.path.join(rasters_dir, raster_files[0])) as src:
    raster_resolution = abs(src.transform[0])
    raster_transform = src.transform
    raster_crs = src.crs

print(f"📐 Raster resolution: {raster_resolution:.4f}° (~{raster_resolution * 111:.1f} km)")
print(f"📁 Number of environmental variables: {len(raster_files)}")
print(f"\n📋 Variables:")
for i, f in enumerate(raster_files, 1):
    print(f"   {i:2d}. {f}")

📐 Raster resolution: 0.0083° (~0.9 km)
📁 Number of environmental variables: 19

📋 Variables:
    1. CHELSA_bio10_1981-2010_V.2.1.tif
    2. CHELSA_bio11_1981-2010_V.2.1.tif
    3. CHELSA_bio12_1981-2010_V.2.1.tif
    4. CHELSA_bio13_1981-2010_V.2.1.tif
    5. CHELSA_bio14_1981-2010_V.2.1.tif
    6. CHELSA_bio15_1981-2010_V.2.1.tif
    7. CHELSA_bio16_1981-2010_V.2.1.tif
    8. CHELSA_bio17_1981-2010_V.2.1.tif
    9. CHELSA_bio18_1981-2010_V.2.1.tif
   10. CHELSA_bio19_1981-2010_V.2.1.tif
   11. CHELSA_bio1_1981-2010_V.2.1.tif
   12. CHELSA_bio2_1981-2010_V.2.1.tif
   13. CHELSA_bio3_1981-2010_V.2.1.tif
   14. CHELSA_bio4_1981-2010_V.2.1.tif
   15. CHELSA_bio5_1981-2010_V.2.1.tif
   16. CHELSA_bio6_1981-2010_V.2.1.tif
   17. CHELSA_bio7_1981-2010_V.2.1.tif
   18. CHELSA_bio8_1981-2010_V.2.1.tif
   19. CHELSA_bio9_1981-2010_V.2.1.tif

6.2 Aggregate Occurrences by Raster Cell

Multiple species observations can occur at the same location. We need to: 1. Group observations by unique coordinates 2. Count occurrences per species at each location 3. This creates our occurrence count matrix (y)

# Aggregate observations by unique location
# This groups all species observations at each coordinate pair
df_unique = df_filtered.groupby(['decimalLongitude', 'decimalLatitude']).agg({
    'species': list  # Collect all species observed at this location
}).reset_index()

# Get unique species list and create index mapping
species_list = df_filtered['species'].unique()
num_species = len(species_list)
species_to_idx = {species: idx for idx, species in enumerate(species_list)}

print(f"📍 Unique locations: {len(df_unique):,}")
print(f"🌱 Unique species: {num_species:,}")
print(f"📊 From {len(df_filtered):,} individual observations")
print(f"\n📐 Aggregation ratio: {len(df_filtered) / len(df_unique):.1f} observations per location (avg)")

📍 Unique locations: 1,040
🌱 Unique species: 102
📊 From 1,145 individual observations

📐 Aggregation ratio: 1.1 observations per location (avg)

6.3 Build Training Tensors

Now we create: - X tensor (environmental features): shape (n_locations, n_variables) - y tensor (occurrence counts): shape (n_locations, n_species)

# Initialize tensors
num_locations = len(df_unique)
num_variables = len(raster_files)

X_tensor = torch.zeros((num_locations, num_variables), dtype=torch.float32)
y_tensor = torch.zeros((num_locations, num_species), dtype=torch.float32)

# Build occurrence count matrix (y)
print("🔢 Building occurrence count matrix...")
for idx, row in tqdm(df_unique.iterrows(), total=len(df_unique), desc="Processing locations"):
    species_at_location = row['species']
    for sp in species_at_location:
        y_tensor[idx, species_to_idx[sp]] += 1

# Extract environmental values at each location
print("\n🌡️ Extracting environmental values...")
coords = list(zip(df_unique['decimalLongitude'], df_unique['decimalLatitude']))

for var_idx, filename in enumerate(tqdm(raster_files, desc="Processing rasters")):
    filepath = os.path.join(rasters_dir, filename)

    with rasterio.open(filepath) as src:
        nodata = src.nodata
        # Convert to float first to allow NaN assignment
        values = np.array([val[0] for val in src.sample(coords)], dtype=np.float32)

        # Handle nodata values
        if nodata is not None:
            values[values == nodata] = np.nan

        X_tensor[:, var_idx] = torch.tensor(values, dtype=torch.float32)

print(f"\n✅ Tensor creation complete!")
print(f"   X (environmental features): {X_tensor.shape}")
print(f"   y (occurrence counts):      {y_tensor.shape}")

🔢 Building occurrence count matrix...

Processing locations: 100%|██████████| 1040/1040 [00:00<00:00, 10967.15it/s]


🌡️ Extracting environmental values...

Processing rasters: 100%|██████████| 19/19 [00:01<00:00, 18.11it/s]


✅ Tensor creation complete!
   X (environmental features): torch.Size([1040, 19])
   y (occurrence counts):      torch.Size([1040, 102])

7. 📈 Summary Statistics & Data Quality Check

Let’s examine the quality of our prepared data:

# Check for missing values
nan_mask = torch.isnan(X_tensor)
rows_with_nan = nan_mask.any(dim=1).sum().item()
total_nan = nan_mask.sum().item()

print("📊 DATA SUMMARY")
print("=" * 60)
print(f"\n🔢 Tensor Shapes:")
print(f"   X (features):   {X_tensor.shape} → {num_locations:,} locations × {num_variables} variables")
print(f"   y (occurrences): {y_tensor.shape} → {num_locations:,} locations × {num_species:,} species")

print(f"\n📈 Feature Statistics:")
for i, fname in enumerate(raster_files[:5]):
    var_name = fname.replace('wc2.1_10m_', '').replace('.tif', '')
    values = X_tensor[:, i]
    valid_values = values[~torch.isnan(values)]
    print(f"   {var_name}: min={valid_values.min():.1f}, max={valid_values.max():.1f}, mean={valid_values.mean():.1f}")
print(f"   ... and {len(raster_files) - 5} more variables")

print(f"\n⚠️ Missing Values:")
print(f"   Locations with NaN: {rows_with_nan:,} / {num_locations:,} ({100*rows_with_nan/num_locations:.1f}%)")
print(f"   Total NaN values: {total_nan:,}")

print(f"\n🌱 Species Occurrence Statistics:")
species_counts = y_tensor.sum(dim=0)
print(f"   Total occurrences in y: {y_tensor.sum().item():,.0f}")
print(f"   Species with data: {(species_counts > 0).sum().item():,} / {num_species:,}")
print(f"   Max occurrences per species: {species_counts.max().item():.0f}")
print(f"   Median occurrences per species: {torch.median(species_counts[species_counts > 0]).item():.0f}")

📊 DATA SUMMARY
============================================================

🔢 Tensor Shapes:
   X (features):   torch.Size([1040, 19]) → 1,040 locations × 19 variables
   y (occurrences): torch.Size([1040, 102]) → 1,040 locations × 102 species

📈 Feature Statistics:
   CHELSA_bio10_1981-2010_V.2.1: min=2796.0, max=3022.0, mean=2948.7
   CHELSA_bio11_1981-2010_V.2.1: min=2782.0, max=2996.0, mean=2934.1
   CHELSA_bio12_1981-2010_V.2.1: min=13697.0, max=65535.0, mean=38994.0
   CHELSA_bio13_1981-2010_V.2.1: min=2885.0, max=11099.0, mean=5588.5
   CHELSA_bio14_1981-2010_V.2.1: min=15.0, max=2696.0, mean=913.1
   ... and 14 more variables

⚠️ Missing Values:
   Locations with NaN: 0 / 1,040 (0.0%)
   Total NaN values: 0

🌱 Species Occurrence Statistics:
   Total occurrences in y: 1,145
   Species with data: 102 / 102
   Max occurrences per species: 344
   Median occurrences per species: 2

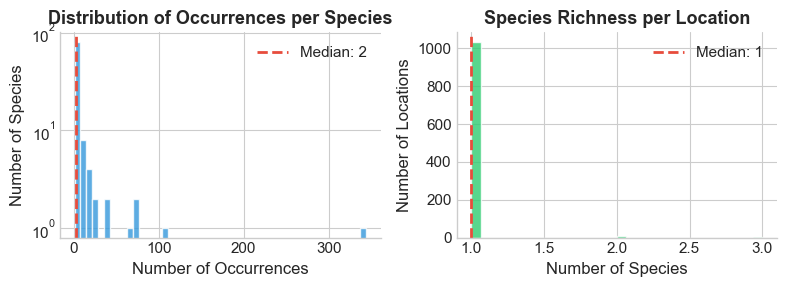

# Visualize species occurrence distribution
fig, axes = plt.subplots(1, 2, figsize=(8, 3))

# Distribution of occurrences per species
ax1 = axes[0]
species_totals = y_tensor.sum(dim=0).numpy()
species_totals_nonzero = species_totals[species_totals > 0]

ax1.hist(species_totals_nonzero, bins=50, color='#3498db', edgecolor='white', alpha=0.8)
ax1.axvline(np.median(species_totals_nonzero), color='#e74c3c', linestyle='--', linewidth=2,
            label=f'Median: {np.median(species_totals_nonzero):.0f}')
ax1.set_xlabel('Number of Occurrences', fontsize=12)
ax1.set_ylabel('Number of Species', fontsize=12)
ax1.set_title('Distribution of Occurrences per Species', fontsize=13, fontweight='bold')
ax1.legend()
ax1.set_yscale('log')
ax1.spines['top'].set_visible(False)
ax1.spines['right'].set_visible(False)

# Distribution of species richness per location
ax2 = axes[1]
richness_per_location = (y_tensor > 0).sum(dim=1).numpy()

ax2.hist(richness_per_location, bins=30, color='#2ecc71', edgecolor='white', alpha=0.8)
ax2.axvline(np.median(richness_per_location), color='#e74c3c', linestyle='--', linewidth=2,
            label=f'Median: {np.median(richness_per_location):.0f}')
ax2.set_xlabel('Number of Species', fontsize=12)
ax2.set_ylabel('Number of Locations', fontsize=12)
ax2.set_title('Species Richness per Location', fontsize=13, fontweight='bold')
ax2.legend()
ax2.spines['top'].set_visible(False)
ax2.spines['right'].set_visible(False)

plt.tight_layout()
plt.show()

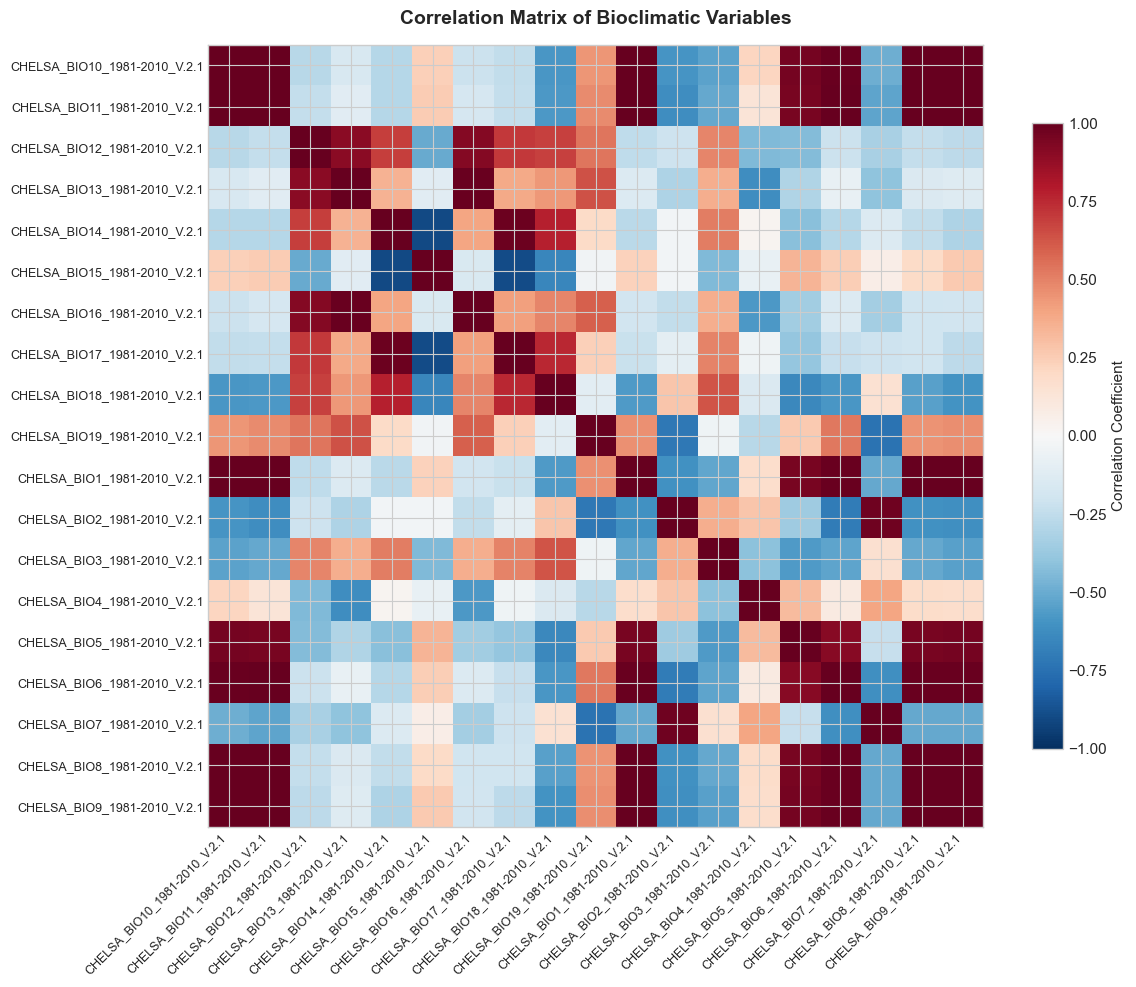

# Correlation matrix of environmental variables
fig, ax = plt.subplots(figsize=(12, 10))

# Calculate correlation matrix (ignoring NaN)
X_numpy = X_tensor.numpy()
valid_mask = ~np.isnan(X_numpy).any(axis=1)
corr_matrix = np.corrcoef(X_numpy[valid_mask].T)

# Variable names
var_names = [f.replace('wc2.1_10m_', '').replace('.tif', '').upper() for f in raster_files]

# Plot heatmap
im = ax.imshow(corr_matrix, cmap='RdBu_r', vmin=-1, vmax=1, aspect='auto')

# Add colorbar
cbar = plt.colorbar(im, ax=ax, shrink=0.8)
cbar.set_label('Correlation Coefficient', fontsize=11)

# Labels
ax.set_xticks(range(len(var_names)))
ax.set_yticks(range(len(var_names)))
ax.set_xticklabels(var_names, rotation=45, ha='right', fontsize=9)
ax.set_yticklabels(var_names, fontsize=9)

ax.set_title('Correlation Matrix of Bioclimatic Variables', fontsize=14, fontweight='bold', pad=15)

plt.tight_layout()
plt.show()

print("\n💡 Note: Highly correlated variables (|r| > 0.8) may cause multicollinearity issues.")
print("   Consider feature selection or PCA for model training.")

💡 Note: Highly correlated variables (|r| > 0.8) may cause multicollinearity issues.
   Consider feature selection or PCA for model training.

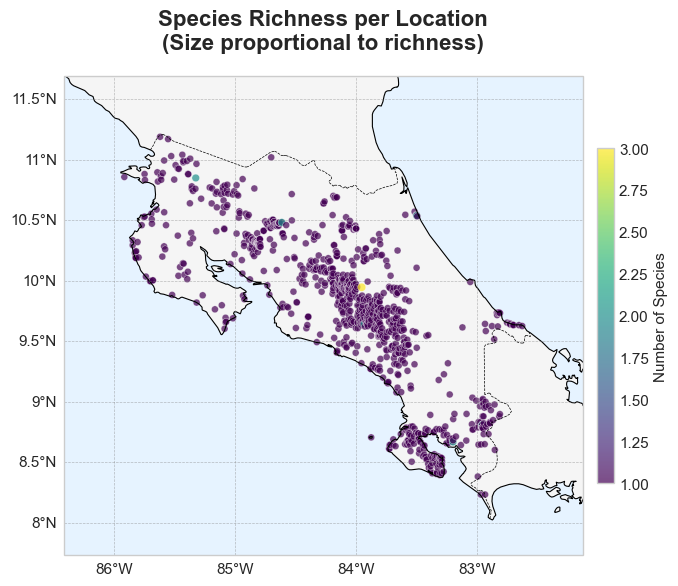

7.1 🗺️ Map of Species Richness

Let’s visualize the species richness (number of different species) at each location:

# Map species richness
fig = plt.figure(figsize=(8, 6))
ax = fig.add_subplot(1, 1, 1, projection=ccrs.PlateCarree())

# Calculate species richness per location
richness = (y_tensor > 0).sum(dim=1).numpy()

# Map extent
padding = 0.5
extent = [
    df_unique['decimalLongitude'].min() - padding,
    df_unique['decimalLongitude'].max() + padding,
    df_unique['decimalLatitude'].min() - padding,
    df_unique['decimalLatitude'].max() + padding
]
ax.set_extent(extent, crs=ccrs.PlateCarree())

# Add features
ax.add_feature(cfeature.LAND, facecolor='#f5f5f5')
ax.add_feature(cfeature.OCEAN, facecolor='#e6f3ff')
ax.add_feature(cfeature.COASTLINE, linewidth=0.8)
ax.add_feature(cfeature.BORDERS, linestyle='--', linewidth=0.5)

# Create colormap
scatter = ax.scatter(
    df_unique['decimalLongitude'],
    df_unique['decimalLatitude'],
    c=richness,
    cmap='viridis',
    s=20 + richness * 5,  # Size proportional to richness
    alpha=0.7,
    edgecolor='white',
    linewidth=0.3,
    transform=ccrs.PlateCarree()
)

# Colorbar
cbar = plt.colorbar(scatter, ax=ax, shrink=0.7, pad=0.02)
cbar.set_label('Number of Species', fontsize=11)

# Gridlines
gl = ax.gridlines(draw_labels=True, linewidth=0.5, color='gray', alpha=0.5, linestyle='--')
gl.top_labels = False
gl.right_labels = False

ax.set_title('Species Richness per Location\n(Size proportional to richness)',
             fontsize=16, fontweight='bold', pad=20)

plt.tight_layout()
plt.show()

🎯 Intermediate Summary

We have successfully:

1. ✅ Loaded and explored GBIF biodiversity data from Costa Rica
2. ✅ Visualized species occurrences on interactive maps
3. ✅ Cropped environmental rasters (WorldClim bioclimatic variables) to the study area
4. ✅ Built training tensors:
   • X: Environmental features at each unique location
   • y: Species occurrence counts (multi-label target)

---

8. 🔀 Spatial Block Split for Train/Validation

To properly evaluate our model, we need to split our data into training and validation sets. However, using random splits can lead to spatial autocorrelation issues where nearby points end up in both sets.

Instead, we’ll use a spatial block split based on geographic coordinates, ensuring that training and validation data come from different geographic regions.

# Spatial Block Split
# We'll divide the study area into blocks based on longitude and assign blocks to train/validation

# Get coordinates from df_unique
longitudes = df_unique['decimalLongitude'].values
latitudes = df_unique['decimalLatitude'].values

# Define the split based on longitude (roughly 80% train, 20% validation)
# We'll use the western part for training and eastern part for validation
lon_threshold = np.percentile(longitudes, 90)

# Create train/validation masks
train_mask = longitudes < lon_threshold
val_mask = ~train_mask

print("🔀 SPATIAL BLOCK SPLIT")
print("=" * 50)
print(f"📍 Longitude threshold: {lon_threshold:.4f}°")
print(f"\n📊 Split statistics:")
print(f"   Training set:   {train_mask.sum():,} locations ({100*train_mask.mean():.1f}%)")
print(f"   Validation set: {val_mask.sum():,} locations ({100*val_mask.mean():.1f}%)")

# Split the tensors
X_train = X_tensor[train_mask]
y_train = y_tensor[train_mask]
X_val = X_tensor[val_mask]
y_val = y_tensor[val_mask]

# Get coordinates for plotting
train_coords = df_unique[train_mask][['decimalLongitude', 'decimalLatitude']].values
val_coords = df_unique[val_mask][['decimalLongitude', 'decimalLatitude']].values

print(f"\n📐 Tensor shapes:")
print(f"   X_train: {X_train.shape}")
print(f"   y_train: {y_train.shape}")
print(f"   X_val:   {X_val.shape}")
print(f"   y_val:   {y_val.shape}")

🔀 SPATIAL BLOCK SPLIT
==================================================
📍 Longitude threshold: -83.2931°

📊 Split statistics:
   Training set:   936 locations (90.0%)
   Validation set: 104 locations (10.0%)

📐 Tensor shapes:
   X_train: torch.Size([936, 19])
   y_train: torch.Size([936, 102])
   X_val:   torch.Size([104, 19])
   y_val:   torch.Size([104, 102])

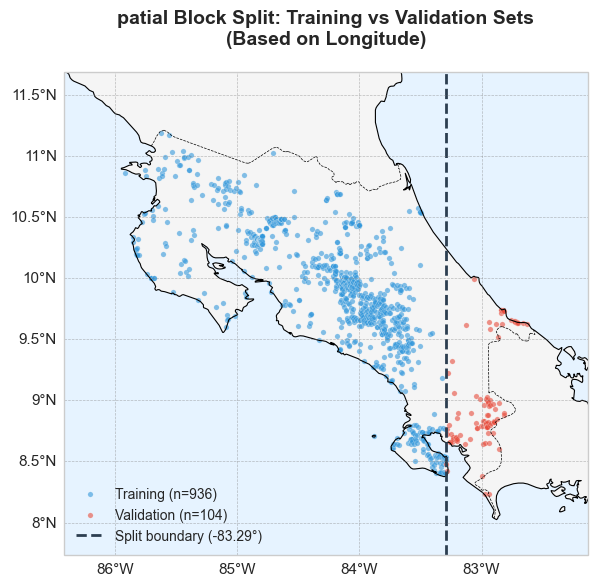

# Visualize the spatial split on a map
fig = plt.figure(figsize=(8, 6))
ax = fig.add_subplot(1, 1, 1, projection=ccrs.PlateCarree())

# Map extent
padding = 0.5
extent = [
    df_unique['decimalLongitude'].min() - padding,
    df_unique['decimalLongitude'].max() + padding,
    df_unique['decimalLatitude'].min() - padding,
    df_unique['decimalLatitude'].max() + padding
]
ax.set_extent(extent, crs=ccrs.PlateCarree())

# Add map features
ax.add_feature(cfeature.LAND, facecolor='#f5f5f5')
ax.add_feature(cfeature.OCEAN, facecolor='#e6f3ff')
ax.add_feature(cfeature.COASTLINE, linewidth=0.8)
ax.add_feature(cfeature.BORDERS, linestyle='--', linewidth=0.5)

# Plot training points (blue)
ax.scatter(train_coords[:, 0], train_coords[:, 1],
           c='#3498db', s=15, alpha=0.6, label=f'Training (n={len(train_coords):,})',
           transform=ccrs.PlateCarree(), edgecolor='white', linewidth=0.2)

# Plot validation points (red)
ax.scatter(val_coords[:, 0], val_coords[:, 1],
           c='#e74c3c', s=15, alpha=0.6, label=f'Validation (n={len(val_coords):,})',
           transform=ccrs.PlateCarree(), edgecolor='white', linewidth=0.2)

# Draw the split line using plot instead of axvline (works with cartopy projections)
lat_min, lat_max = df_unique['decimalLatitude'].min() - padding, df_unique['decimalLatitude'].max() + padding
ax.plot([lon_threshold, lon_threshold], [lat_min, lat_max],
        color='#2c3e50', linestyle='--', linewidth=2,
        transform=ccrs.PlateCarree(), label=f'Split boundary ({lon_threshold:.2f}°)')

# Gridlines
gl = ax.gridlines(draw_labels=True, linewidth=0.5, color='gray', alpha=0.5, linestyle='--')
gl.top_labels = False
gl.right_labels = False

ax.set_title('patial Block Split: Training vs Validation Sets\n(Based on Longitude)',
             fontsize=14, fontweight='bold', pad=20)
ax.legend(loc='lower left', fontsize=10)

plt.tight_layout()
plt.show()

9. 🧠 DeepMaxent Model Training

Now we’ll train the DeepMaxent model using the prepared training data. The DeepMaxent loss function implements the maximum entropy principle for species distribution modeling.

9.1 Data Preprocessing

Before training, we need to: 1. Handle missing values (NaN) in the environmental features 2. Normalize the features using StandardScaler

# Handle NaN values - remove locations with missing environmental data
train_nan_mask = torch.isnan(X_train).any(dim=1)
val_nan_mask = torch.isnan(X_val).any(dim=1)

X_train_clean = X_train[~train_nan_mask]
y_train_clean = y_train[~train_nan_mask]
X_val_clean = X_val[~val_nan_mask]
y_val_clean = y_val[~val_nan_mask]

print("🧹 Removing locations with NaN values...")
print(f"   Training: {train_nan_mask.sum().item()} locations removed → {X_train_clean.shape[0]:,} remaining")
print(f"   Validation: {val_nan_mask.sum().item()} locations removed → {X_val_clean.shape[0]:,} remaining")

# Normalize features using StandardScaler
scaler = StandardScaler()

# Fit on training data only
X_train_np = X_train_clean.numpy()
X_val_np = X_val_clean.numpy()

X_train_scaled = scaler.fit_transform(X_train_np)
X_val_scaled = scaler.transform(X_val_np)

# Convert back to tensors
X_train_tensor = torch.tensor(X_train_scaled, dtype=torch.float32)
y_train_tensor = y_train_clean
X_val_tensor = torch.tensor(X_val_scaled, dtype=torch.float32)
y_val_tensor = y_val_clean

print(f"\n✅ Data preprocessing complete!")
print(f"   X_train_tensor: {X_train_tensor.shape}")
print(f"   y_train_tensor: {y_train_tensor.shape}")
print(f"   X_val_tensor:   {X_val_tensor.shape}")
print(f"   y_val_tensor:   {y_val_tensor.shape}")

🧹 Removing locations with NaN values...
   Training: 0 locations removed → 936 remaining
   Validation: 0 locations removed → 104 remaining

✅ Data preprocessing complete!
   X_train_tensor: torch.Size([936, 19])
   y_train_tensor: torch.Size([936, 102])
   X_val_tensor:   torch.Size([104, 19])
   y_val_tensor:   torch.Size([104, 102])

9.2 Define Training Configuration and Model

# Additional imports for training
import torch.optim as optim
from torch.utils.data import TensorDataset, DataLoader
from sklearn.metrics import roc_auc_score
import copy

# Training configuration using a simple namespace
class Args:
    def __init__(self):
        self.learning_rate = 0.0001
        self.epoch = 100
        self.hidden_nbr = 3  # Number of hidden layers
        self.weight_decay = 3e-4  # L2 regularization

args = Args()

# Set device
device = torch.device("cuda" if torch.cuda.is_available() else "cpu")
print(f"🖥️ Using device: {device}")

# Model parameters
input_size = X_train_tensor.shape[1]
output_size = y_train_tensor.shape[1]
hidden_size = 250

print(f"\n🧠 Model Architecture:")
print(f"   Input size:  {input_size} (environmental variables)")
print(f"   Hidden size: {hidden_size}")
print(f"   Output size: {output_size} (species)")
print(f"   Hidden layers: {args.hidden_nbr}")

print(f"\n⚙️ Training Configuration:")
print(f"   Learning rate: {args.learning_rate}")
print(f"   Epochs: {args.epoch}")
print(f"   Weight decay: {args.weight_decay}")
print(f"   Batch size: 250")

🖥️ Using device: cuda

🧠 Model Architecture:
   Input size:  19 (environmental variables)
   Hidden size: 250
   Output size: 102 (species)
   Hidden layers: 3

⚙️ Training Configuration:
   Learning rate: 0.0001
   Epochs: 100
   Weight decay: 0.0003
   Batch size: 250

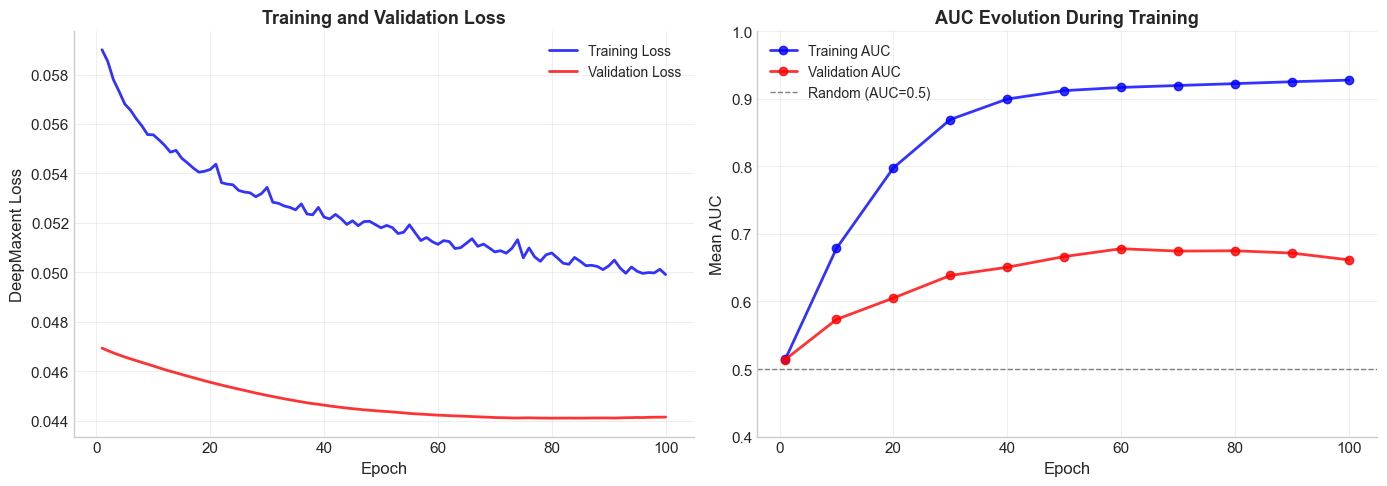

9.3 Training Loop with Validation AUC

We’ll implement the training loop with: - DeepMaxent loss for optimization - Validation AUC computed at each epoch to monitor performance - Best model selection based on validation loss

def compute_auc(model, X, y, device):
    """
    Compute mean AUC across all species with sufficient data.

    Args:
        model: trained DeepMaxent model
        X: input features tensor
        y: target occurrence tensor
        device: computation device

    Returns:
        mean_auc: average AUC across species
        valid_aucs: list of AUC values for each valid species
    """
    model.eval()
    with torch.no_grad():
        X_dev = X.to(device)
        predictions = model(X_dev).cpu()
        # Apply softmax to get probabilities
        probs = torch.softmax(predictions, dim=0).numpy()

    y_np = y.numpy()

    # Convert to binary (presence/absence)
    y_binary = (y_np > 0).astype(int)

    valid_aucs = []
    for sp_idx in range(y_binary.shape[1]):
        # Only compute AUC if species has both presences and absences
        if y_binary[:, sp_idx].sum() > 0 and y_binary[:, sp_idx].sum() < len(y_binary):
            try:
                auc = roc_auc_score(y_binary[:, sp_idx], probs[:, sp_idx])
                valid_aucs.append(auc)
            except:
                pass

    mean_auc = np.mean(valid_aucs) if valid_aucs else 0.0
    return mean_auc, valid_aucs


def train_deepmodel(X_train, y_train, X_val, y_val, args, hidden_size=250, device="cuda"):
    """
    Train DeepMaxent model with validation monitoring.

    Returns:
        dict with model, predictions, loss history, and AUC history
    """
    # Create data loaders
    train_dataset = TensorDataset(X_train, y_train)
    train_loader = DataLoader(train_dataset, batch_size=250, shuffle=True)

    # Initialize model and loss
    input_size = X_train.shape[1]
    output_size = y_train.shape[1]

    model = deepmaxent_model(input_size, hidden_size, output_size, args.hidden_nbr)
    model = model.to(device)

    criterion = deepmaxent_loss().to(device)

    optimizer = optim.Adam(
        model.parameters(),
        lr=args.learning_rate,
        weight_decay=args.weight_decay
    )

    # Training history
    train_losses = []
    val_losses = []
    train_aucs = []
    val_aucs = []

    best_val_loss = float('inf')
    best_model_state = None

    print("🚀 Starting training...")
    print("=" * 60)

    for epoch in tqdm(range(args.epoch), desc="Training"):
        # Training phase
        model.train()
        total_train_loss = 0.0

        for batch_X, batch_y in train_loader:
            batch_X, batch_y = batch_X.to(device), batch_y.to(device)

            optimizer.zero_grad()
            outputs = model(batch_X)
            loss = criterion(outputs, batch_y)
            loss.backward()
            optimizer.step()

            total_train_loss += loss.item()

        avg_train_loss = total_train_loss / len(train_loader)
        train_losses.append(avg_train_loss)

        # Validation phase
        model.eval()
        with torch.no_grad():
            X_val_dev = X_val.to(device)
            y_val_dev = y_val.to(device)
            val_outputs = model(X_val_dev)
            val_loss = criterion(val_outputs, y_val_dev).item()
        val_losses.append(val_loss)

        # Compute AUC every 10 epochs (to save time)
        if (epoch + 1) % 10 == 0 or epoch == 0:
            train_auc, _ = compute_auc(model, X_train, y_train, device)
            val_auc, _ = compute_auc(model, X_val, y_val, device)
            train_aucs.append((epoch, train_auc))
            val_aucs.append((epoch, val_auc))

            print(f"   Epoch {epoch+1:3d} | Train Loss: {avg_train_loss:.4f} | Val Loss: {val_loss:.4f} | "
                  f"Train AUC: {train_auc:.4f} | Val AUC: {val_auc:.4f}")

        # Save best model
        if val_loss < best_val_loss:
            best_val_loss = val_loss
            best_model_state = copy.deepcopy(model.state_dict())

    # Load best model
    model.load_state_dict(best_model_state)

    # Final predictions
    model.eval()
    with torch.no_grad():
        final_predictions = model(X_train.to(device)).cpu()

    print("=" * 60)
    print(f" Training complete! Best validation loss: {best_val_loss:.4f}")

    return {
        "model": model,
        "predictions": final_predictions,
        "train_losses": train_losses,
        "val_losses": val_losses,
        "train_aucs": train_aucs,
        "val_aucs": val_aucs,
        "best_val_loss": best_val_loss
    }

# Train the model!
results = train_deepmodel(
    X_train_tensor,
    y_train_tensor,
    X_val_tensor,
    y_val_tensor,
    args,
    hidden_size=hidden_size,
    device=device
)

🚀 Starting training...
============================================================

Training:   5%|▌         | 5/100 [00:00<00:13,  6.97it/s]

   Epoch   1 | Train Loss: 0.0590 | Val Loss: 0.0469 | Train AUC: 0.5143 | Val AUC: 0.5141

Training:  17%|█▋        | 17/100 [00:01<00:04, 19.31it/s]

   Epoch  10 | Train Loss: 0.0556 | Val Loss: 0.0462 | Train AUC: 0.6787 | Val AUC: 0.5734

Training:  25%|██▌       | 25/100 [00:01<00:03, 19.83it/s]

   Epoch  20 | Train Loss: 0.0542 | Val Loss: 0.0455 | Train AUC: 0.7979 | Val AUC: 0.6052

Training:  35%|███▌      | 35/100 [00:02<00:03, 19.75it/s]

   Epoch  30 | Train Loss: 0.0534 | Val Loss: 0.0450 | Train AUC: 0.8695 | Val AUC: 0.6386

Training:  46%|████▌     | 46/100 [00:02<00:02, 20.64it/s]

   Epoch  40 | Train Loss: 0.0522 | Val Loss: 0.0446 | Train AUC: 0.8998 | Val AUC: 0.6507

Training:  53%|█████▎    | 53/100 [00:03<00:02, 18.09it/s]

   Epoch  50 | Train Loss: 0.0518 | Val Loss: 0.0444 | Train AUC: 0.9122 | Val AUC: 0.6665

Training:  65%|██████▌   | 65/100 [00:03<00:01, 21.85it/s]

   Epoch  60 | Train Loss: 0.0511 | Val Loss: 0.0442 | Train AUC: 0.9170 | Val AUC: 0.6782

Training:  76%|███████▌  | 76/100 [00:04<00:01, 21.73it/s]

   Epoch  70 | Train Loss: 0.0508 | Val Loss: 0.0441 | Train AUC: 0.9198 | Val AUC: 0.6746

Training:  84%|████████▍ | 84/100 [00:04<00:00, 22.10it/s]

   Epoch  80 | Train Loss: 0.0508 | Val Loss: 0.0441 | Train AUC: 0.9226 | Val AUC: 0.6751

Training:  97%|█████████▋| 97/100 [00:05<00:00, 24.29it/s]

   Epoch  90 | Train Loss: 0.0503 | Val Loss: 0.0441 | Train AUC: 0.9254 | Val AUC: 0.6717

Training: 100%|██████████| 100/100 [00:05<00:00, 17.97it/s]

   Epoch 100 | Train Loss: 0.0499 | Val Loss: 0.0441 | Train AUC: 0.9278 | Val AUC: 0.6617
============================================================
 Training complete! Best validation loss: 0.0441

9.4 Visualize Training Progress

Let’s visualize the training and validation loss curves, as well as the AUC evolution:

# Plot training curves
fig, axes = plt.subplots(1, 2, figsize=(14, 5))

# Loss curves
ax1 = axes[0]
epochs = range(1, len(results['train_losses']) + 1)
ax1.plot(epochs, results['train_losses'], 'b-', linewidth=2, label='Training Loss', alpha=0.8)
ax1.plot(epochs, results['val_losses'], 'r-', linewidth=2, label='Validation Loss', alpha=0.8)
ax1.set_xlabel('Epoch', fontsize=12)
ax1.set_ylabel('DeepMaxent Loss', fontsize=12)
ax1.set_title('Training and Validation Loss', fontsize=13, fontweight='bold')
ax1.legend(fontsize=10)
ax1.grid(True, alpha=0.3)
ax1.spines['top'].set_visible(False)
ax1.spines['right'].set_visible(False)

# AUC curves
ax2 = axes[1]
train_auc_epochs = [x[0] + 1 for x in results['train_aucs']]
train_auc_values = [x[1] for x in results['train_aucs']]
val_auc_epochs = [x[0] + 1 for x in results['val_aucs']]
val_auc_values = [x[1] for x in results['val_aucs']]

ax2.plot(train_auc_epochs, train_auc_values, 'b-o', linewidth=2, markersize=6,
         label='Training AUC', alpha=0.8)
ax2.plot(val_auc_epochs, val_auc_values, 'r-o', linewidth=2, markersize=6,
         label='Validation AUC', alpha=0.8)
ax2.axhline(y=0.5, color='gray', linestyle='--', linewidth=1, label='Random (AUC=0.5)')
ax2.set_xlabel('Epoch', fontsize=12)
ax2.set_ylabel('Mean AUC', fontsize=12)
ax2.set_title('AUC Evolution During Training', fontsize=13, fontweight='bold')
ax2.legend(fontsize=10)
ax2.grid(True, alpha=0.3)
ax2.set_ylim([0.4, 1.0])
ax2.spines['top'].set_visible(False)
ax2.spines['right'].set_visible(False)

plt.tight_layout()
plt.show()

# Print final metrics
print("\n📊 FINAL METRICS")
print("=" * 50)
print(f"   Final Training Loss:   {results['train_losses'][-1]:.4f}")
print(f"   Final Validation Loss: {results['val_losses'][-1]:.4f}")
print(f"   Best Validation Loss:  {results['best_val_loss']:.4f}")
print(f"\n   Final Training AUC:    {train_auc_values[-1]:.4f}")
print(f"   Final Validation AUC:  {val_auc_values[-1]:.4f}")

📊 FINAL METRICS
==================================================
   Final Training Loss:   0.0499
   Final Validation Loss: 0.0441
   Best Validation Loss:  0.0441

   Final Training AUC:    0.9278
   Final Validation AUC:  0.6617

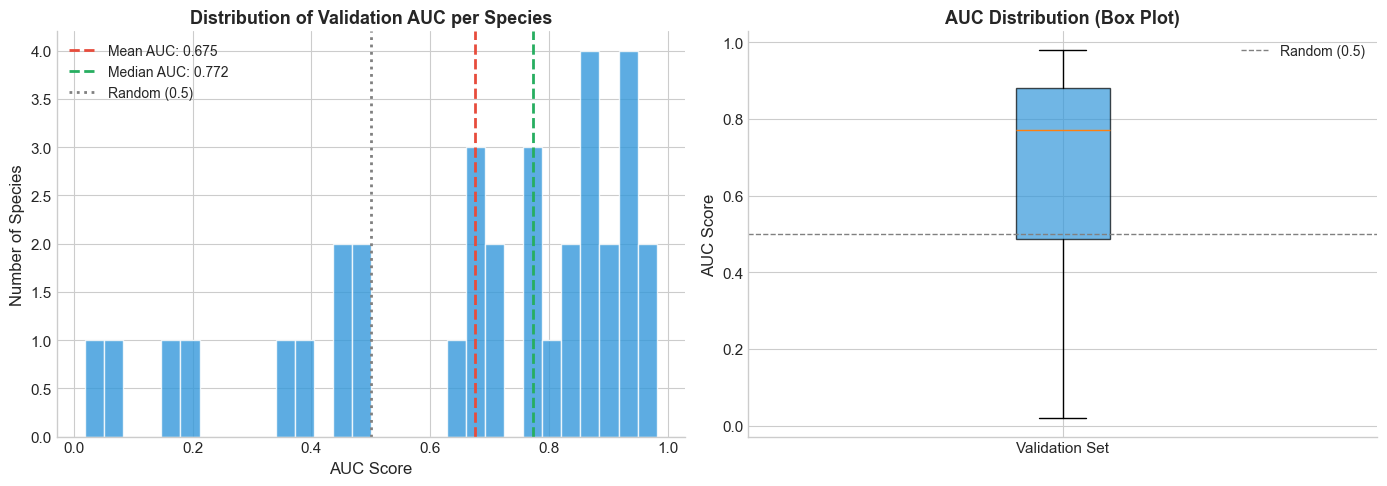

9.5 Detailed AUC Analysis per Species

Let’s analyze the AUC distribution across species to understand model performance:

# Compute detailed AUC for validation set
val_mean_auc, val_species_aucs = compute_auc(results['model'], X_val_tensor, y_val_tensor, device)

# Distribution of AUC values
fig, axes = plt.subplots(1, 2, figsize=(14, 5))

# Histogram of AUC values
ax1 = axes[0]
ax1.hist(val_species_aucs, bins=30, color='#3498db', edgecolor='white', alpha=0.8)
ax1.axvline(x=np.mean(val_species_aucs), color='#e74c3c', linestyle='--', linewidth=2,
            label=f'Mean AUC: {np.mean(val_species_aucs):.3f}')
ax1.axvline(x=np.median(val_species_aucs), color='#27ae60', linestyle='--', linewidth=2,
            label=f'Median AUC: {np.median(val_species_aucs):.3f}')
ax1.axvline(x=0.5, color='gray', linestyle=':', linewidth=2, label='Random (0.5)')
ax1.set_xlabel('AUC Score', fontsize=12)
ax1.set_ylabel('Number of Species', fontsize=12)
ax1.set_title('Distribution of Validation AUC per Species', fontsize=13, fontweight='bold')
ax1.legend(fontsize=10)
ax1.spines['top'].set_visible(False)
ax1.spines['right'].set_visible(False)

# Box plot
ax2 = axes[1]
box = ax2.boxplot(val_species_aucs, vert=True, patch_artist=True)
box['boxes'][0].set_facecolor('#3498db')
box['boxes'][0].set_alpha(0.7)
ax2.axhline(y=0.5, color='gray', linestyle='--', linewidth=1, label='Random (0.5)')
ax2.set_ylabel('AUC Score', fontsize=12)
ax2.set_title('AUC Distribution (Box Plot)', fontsize=13, fontweight='bold')
ax2.set_xticklabels(['Validation Set'])
ax2.legend(fontsize=10)
ax2.spines['top'].set_visible(False)
ax2.spines['right'].set_visible(False)

plt.tight_layout()
plt.show()

# Summary statistics
print("\n📊 VALIDATION AUC SUMMARY")
print("=" * 50)
print(f"   Number of species evaluated: {len(val_species_aucs)}")
print(f"   Mean AUC:   {np.mean(val_species_aucs):.4f}")
print(f"   Median AUC: {np.median(val_species_aucs):.4f}")
print(f"   Std AUC:    {np.std(val_species_aucs):.4f}")
print(f"   Min AUC:    {np.min(val_species_aucs):.4f}")
print(f"   Max AUC:    {np.max(val_species_aucs):.4f}")
print(f"\n   Species with AUC > 0.7: {sum(np.array(val_species_aucs) > 0.7)} ({100*sum(np.array(val_species_aucs) > 0.7)/len(val_species_aucs):.1f}%)")
print(f"   Species with AUC > 0.5: {sum(np.array(val_species_aucs) > 0.5)} ({100*sum(np.array(val_species_aucs) > 0.5)/len(val_species_aucs):.1f}%)")

📊 VALIDATION AUC SUMMARY
==================================================
   Number of species evaluated: 34
   Mean AUC:   0.6751
   Median AUC: 0.7720
   Std AUC:    0.2692
   Min AUC:    0.0194
   Max AUC:    0.9806

   Species with AUC > 0.7: 20 (58.8%)
   Species with AUC > 0.5: 24 (70.6%)

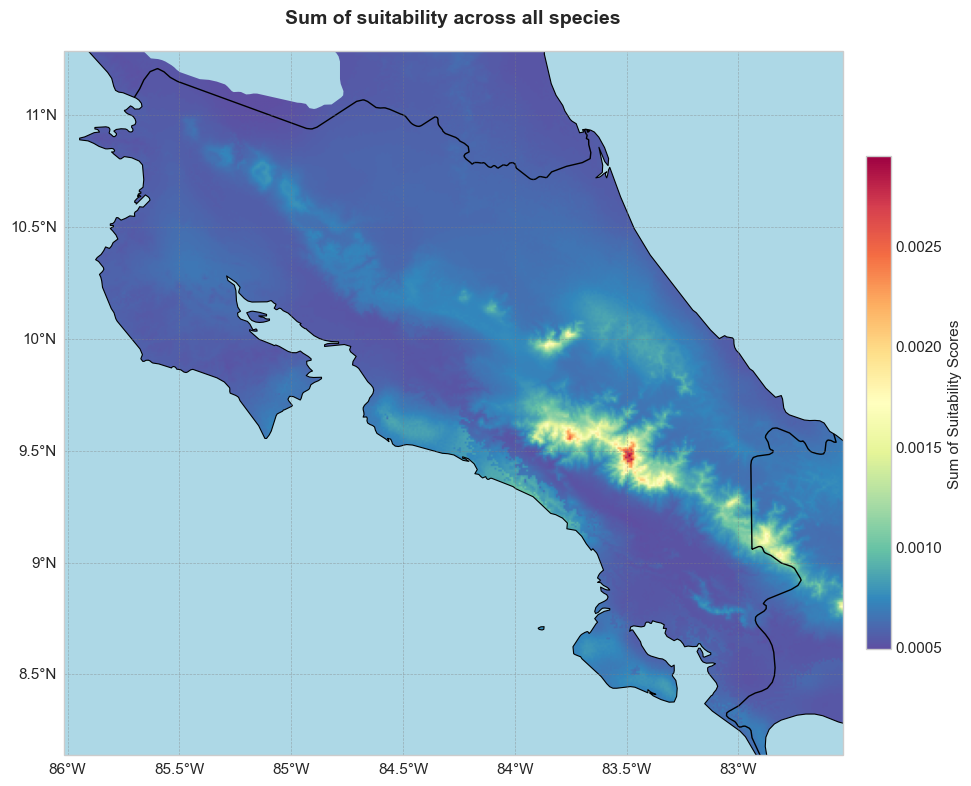

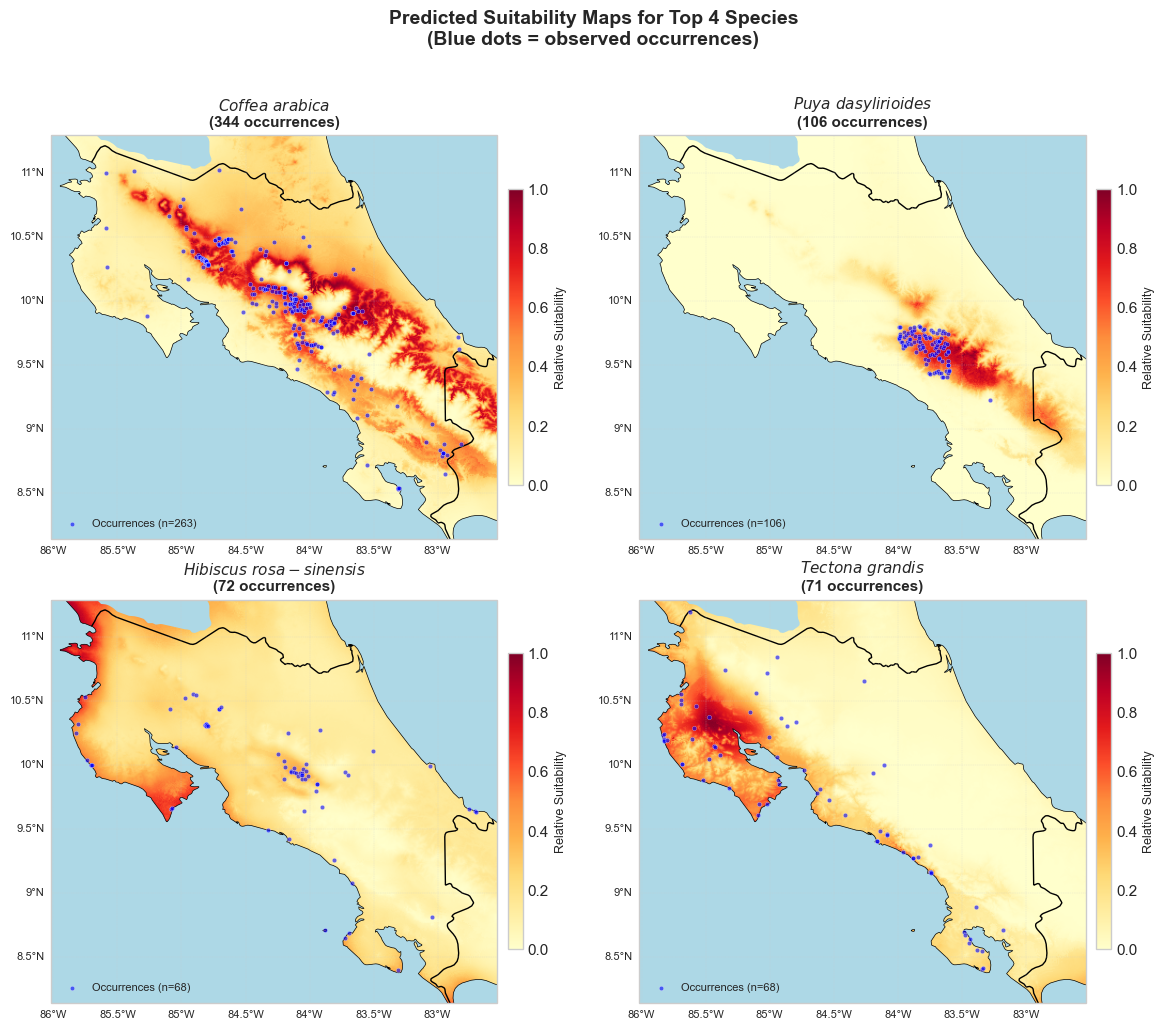

10. 🗺️ Generate Species Suitability Maps

Now that we have a trained model, we’ll apply it to the entire study area to generate suitability maps for each species. This involves:

1. Loading all bioclimatic rasters as a stack
2. Applying the same preprocessing (StandardScaler) used during training
3. Running the model on each pixel
4. Converting outputs to suitability probabilities

# Load all rasters and stack them in the correct order
print("📂 Loading rasters in training order...")
print(f"   Raster directory: {rasters_dir}")
print(f"   Number of variables: {len(raster_files)}")

# Load the first raster to get metadata
with rasterio.open(os.path.join(rasters_dir, raster_files[0])) as src:
    raster_height = src.height
    raster_width = src.width
    raster_transform_map = src.transform
    raster_crs_map = src.crs
    raster_bounds = src.bounds

print(f"\n📐 Raster dimensions: {raster_width} × {raster_height} pixels")
print(f"   Total pixels: {raster_width * raster_height:,}")

# Stack all rasters in the same order as training
raster_stack = np.zeros((len(raster_files), raster_height, raster_width), dtype=np.float32)

for i, filename in enumerate(tqdm(raster_files, desc="Loading rasters")):
    filepath = os.path.join(rasters_dir, filename)
    with rasterio.open(filepath) as src:
        data = src.read(1).astype(np.float32)
        nodata_val = src.nodata

        # Replace nodata with NaN
        if nodata_val is not None:
            data[data == nodata_val] = np.nan
        # Also mask extreme values
        data[np.abs(data) > 1e10] = np.nan

        raster_stack[i] = data

print(f"\n✅ Raster stack shape: {raster_stack.shape}")
print(f"   Order of variables:")
for i, f in enumerate(raster_files):
    print(f"   {i}: {f}")

📂 Loading rasters in training order...
   Raster directory: data/tutorial/cropped_rasters/
   Number of variables: 19

📐 Raster dimensions: 418 × 378 pixels
   Total pixels: 158,004

Loading rasters: 100%|██████████| 19/19 [00:00<00:00, 247.46it/s]


✅ Raster stack shape: (19, 378, 418)
   Order of variables:
   0: CHELSA_bio10_1981-2010_V.2.1.tif
   1: CHELSA_bio11_1981-2010_V.2.1.tif
   2: CHELSA_bio12_1981-2010_V.2.1.tif
   3: CHELSA_bio13_1981-2010_V.2.1.tif
   4: CHELSA_bio14_1981-2010_V.2.1.tif
   5: CHELSA_bio15_1981-2010_V.2.1.tif
   6: CHELSA_bio16_1981-2010_V.2.1.tif
   7: CHELSA_bio17_1981-2010_V.2.1.tif
   8: CHELSA_bio18_1981-2010_V.2.1.tif
   9: CHELSA_bio19_1981-2010_V.2.1.tif
   10: CHELSA_bio1_1981-2010_V.2.1.tif
   11: CHELSA_bio2_1981-2010_V.2.1.tif
   12: CHELSA_bio3_1981-2010_V.2.1.tif
   13: CHELSA_bio4_1981-2010_V.2.1.tif
   14: CHELSA_bio5_1981-2010_V.2.1.tif
   15: CHELSA_bio6_1981-2010_V.2.1.tif
   16: CHELSA_bio7_1981-2010_V.2.1.tif
   17: CHELSA_bio8_1981-2010_V.2.1.tif
   18: CHELSA_bio9_1981-2010_V.2.1.tif

# Reshape raster stack for model prediction
# From (n_variables, height, width) to (n_pixels, n_variables)
n_pixels = raster_height * raster_width

# Reshape: (variables, height, width) -> (height*width, variables)
X_raster = raster_stack.reshape(len(raster_files), -1).T  # Shape: (n_pixels, n_variables)

print(f"📐 Reshaped for prediction: {X_raster.shape}")

# Create mask for valid pixels (no NaN in any variable)
valid_pixel_mask = ~np.isnan(X_raster).any(axis=1)
n_valid_pixels = valid_pixel_mask.sum()

print(f"   Valid pixels: {n_valid_pixels:,} / {n_pixels:,} ({100*n_valid_pixels/n_pixels:.1f}%)")

# Extract only valid pixels for prediction
X_valid = X_raster[valid_pixel_mask]

# Apply the same scaler used during training
print("\n🔄 Applying StandardScaler (same as training)...")
X_valid_scaled = scaler.transform(X_valid)

# Convert to tensor
X_valid_tensor = torch.tensor(X_valid_scaled, dtype=torch.float32)
print(f"   Tensor shape for prediction: {X_valid_tensor.shape}")

📐 Reshaped for prediction: (158004, 19)
   Valid pixels: 158,004 / 158,004 (100.0%)

🔄 Applying StandardScaler (same as training)...
   Tensor shape for prediction: torch.Size([158004, 19])

# Run model prediction on the raster data
print("🧠 Running model prediction on raster pixels...")

model = results['model']
model.eval()
model = model.to(device)

# Predict in batches to avoid memory issues
batch_size = 10000
n_batches = (len(X_valid_tensor) + batch_size - 1) // batch_size

predictions_list = []

with torch.no_grad():
    for i in tqdm(range(n_batches), desc="Predicting"):
        start_idx = i * batch_size
        end_idx = min((i + 1) * batch_size, len(X_valid_tensor))

        batch = X_valid_tensor[start_idx:end_idx].to(device)
        batch_pred = model(batch).cpu()
        predictions_list.append(batch_pred)

# Concatenate all predictions
predictions_valid = torch.cat(predictions_list, dim=0)

# Apply softmax to get suitability probabilities (along spatial dimension)
# This gives relative suitability across space for each species
suitability_valid = torch.softmax(predictions_valid, dim=0).numpy()

print(f"\n✅ Predictions complete!")
print(f"   Suitability shape: {suitability_valid.shape}")
print(f"   (n_valid_pixels, n_species) = ({n_valid_pixels:,}, {num_species:,})")

🧠 Running model prediction on raster pixels...

Predicting: 100%|██████████| 16/16 [00:00<00:00, 176.81it/s]


✅ Predictions complete!
   Suitability shape: (158004, 102)
   (n_valid_pixels, n_species) = (158,004, 102)

# Reconstruct full suitability maps (including NaN pixels)
print("🗺️ Reconstructing suitability maps...")

# Initialize full suitability array with NaN
suitability_maps = np.full((num_species, n_pixels), np.nan, dtype=np.float32)

# Fill in valid pixels
suitability_maps[:, valid_pixel_mask] = suitability_valid.T  # Transpose to (species, pixels)

# Reshape to (n_species, height, width)
suitability_maps = suitability_maps.reshape(num_species, raster_height, raster_width)

print(f"✅ Suitability maps shape: {suitability_maps.shape}")
print(f"   (n_species, height, width) = ({num_species:,}, {raster_height}, {raster_width})")

# Create species index to name mapping
idx_to_species = {idx: species for species, idx in species_to_idx.items()}

# Find top species by number of occurrences for visualization
species_occurrence_counts = y_tensor.sum(dim=0).numpy()
top_species_indices = np.argsort(species_occurrence_counts)[::-1][:10]

print(f"\n📊 Top 10 species by occurrence count:")
for rank, sp_idx in enumerate(top_species_indices, 1):
    sp_name = idx_to_species[sp_idx]
    count = int(species_occurrence_counts[sp_idx])
    print(f"   {rank:2d}. {sp_name}: {count} occurrences")

🗺️ Reconstructing suitability maps...
✅ Suitability maps shape: (102, 378, 418)
   (n_species, height, width) = (102, 378, 418)

📊 Top 10 species by occurrence count:
    1. Coffea arabica: 344 occurrences
    2. Puya dasylirioides: 106 occurrences
    3. Hibiscus rosa-sinensis: 72 occurrences
    4. Tectona grandis: 71 occurrences
    5. Musa coccinea: 65 occurrences
    6. Quercus insignis: 42 occurrences
    7. Peperomia rotundifolia: 39 occurrences
    8. Gunnera talamancana: 27 occurrences
    9. Oxalis corniculata: 22 occurrences
   10. Cedrela odorata: 21 occurrences

10.1 Visualize Suitability Maps for Top Species

Let’s visualize the predicted suitability maps for the most observed species:

# Plot suitability maps for top 4 species
fig, axes = plt.subplots(2, 2, figsize=(12, 10), subplot_kw={'projection': ccrs.PlateCarree()})
axes = axes.flatten()

# Raster extent for plotting
extent_map = [raster_bounds.left, raster_bounds.right, raster_bounds.bottom, raster_bounds.top]

for ax, sp_idx in zip(axes, top_species_indices[:4]):
    sp_name = idx_to_species[sp_idx]
    suitability = suitability_maps[sp_idx]

    # Mask NaN values
    suitability_masked = np.ma.masked_invalid(suitability)

    # Normalize for better visualization (0-1 range based on this species)
    suit_min = np.nanmin(suitability)
    suit_max = np.nanmax(suitability)
    if suit_max > suit_min:
        suitability_norm = (suitability_masked - suit_min) / (suit_max - suit_min)
    else:
        suitability_norm = suitability_masked

    # Set map style (no ocean/lakes)
    ax.set_facecolor('honeydew')
    oceans = cfeature.NaturalEarthFeature('physical', 'ocean', '10m', edgecolor='none', facecolor='lightblue')
    ax.add_feature(oceans, zorder=2)
    lakes = cfeature.NaturalEarthFeature('physical', 'lakes', '10m', edgecolor='none', facecolor='lightblue')
    ax.add_feature(lakes, zorder=2)
    ax.add_feature(cfeature.BORDERS, zorder=2)
    ax.add_feature(cfeature.COASTLINE, linewidth=0.5, zorder=2)

    # Plot suitability map
    im = ax.imshow(suitability_norm, extent=extent_map, origin='upper',
                   cmap='YlOrRd', transform=ccrs.PlateCarree(), vmin=0, vmax=1, zorder=1)

    # Get occurrence points for this species
    sp_occurrences = y_tensor[:, sp_idx].numpy()
    has_occurrence = sp_occurrences > 0
    if has_occurrence.any():
        occ_lons = df_unique['decimalLongitude'].values[has_occurrence]
        occ_lats = df_unique['decimalLatitude'].values[has_occurrence]
        ax.scatter(occ_lons, occ_lats, c='blue', s=10, alpha=0.6,
                   transform=ccrs.PlateCarree(), edgecolor='white', linewidth=0.3,
                   label=f'Occurrences (n={has_occurrence.sum()})', zorder=3)

    # Colorbar
    cbar = plt.colorbar(im, ax=ax, shrink=0.7, pad=0.02)
    cbar.set_label('Relative Suitability', fontsize=9)

    # Gridlines
    gl = ax.gridlines(draw_labels=True, linewidth=0.3, alpha=0.5, linestyle='--')
    gl.top_labels = False
    gl.right_labels = False
    gl.xlabel_style = {'fontsize': 8}
    gl.ylabel_style = {'fontsize': 8}

    # Title with species name in italic
    ax.set_title(f'$\it{{{sp_name.replace(" ", "\ ")}}}$\n({int(species_occurrence_counts[sp_idx])} occurrences)',
                 fontsize=11, fontweight='bold')
    ax.legend(loc='lower left', fontsize=8)

plt.suptitle('Predicted Suitability Maps for Top 4 Species\n(Blue dots = observed occurrences)',
             fontsize=14, fontweight='bold', y=1.02)
plt.tight_layout()
plt.show()

10.2 Species Suitability Richness Prediction Map

We can also create a predicted species common suitability map by summing suitabilities across all species:

# Compute predicted a sum of suitability across species(sum of suitabilities)
# This gives an indication of how many species are predicted to be suitable at each location

# Sum suitabilities across all species
predicted_richness = np.nansum(suitability_maps, axis=0)
predicted_richness_masked = np.ma.masked_invalid(predicted_richness)

# Plot
fig = plt.figure(figsize=(12, 8))
ax = fig.add_subplot(1, 1, 1, projection=ccrs.PlateCarree())

# Set map style (no ocean/lakes visible over land)
ax.set_facecolor('honeydew')
oceans = cfeature.NaturalEarthFeature('physical', 'ocean', '10m', edgecolor='none', facecolor='lightblue')
ax.add_feature(oceans, zorder=2)
lakes = cfeature.NaturalEarthFeature('physical', 'lakes', '10m', edgecolor='none', facecolor='lightblue')
ax.add_feature(lakes, zorder=2)
ax.add_feature(cfeature.BORDERS, zorder=2)
ax.add_feature(cfeature.COASTLINE, linewidth=0.8, zorder=2)

# Plot predicted richness
im = ax.imshow(predicted_richness_masked, extent=extent_map, origin='upper',
               cmap='Spectral_r', transform=ccrs.PlateCarree(), zorder=1)

# Colorbar
cbar = plt.colorbar(im, ax=ax, shrink=0.7, pad=0.02)
cbar.set_label('Sum of Suitability Scores', fontsize=11)

# Gridlines
gl = ax.gridlines(draw_labels=True, linewidth=0.5, color='gray', alpha=0.5, linestyle='--')
gl.top_labels = False
gl.right_labels = False

ax.set_title('Sum of suitability across all species',
             fontsize=14, fontweight='bold', pad=20)

plt.tight_layout()
plt.show()

print(f"Predicted Richness Statistics:")
print(f"   Min: {np.nanmin(predicted_richness):.4f}")
print(f"   Max: {np.nanmax(predicted_richness):.4f}")
print(f"   Mean: {np.nanmean(predicted_richness):.4f}")

Predicted Richness Statistics:
   Min: 0.0005
   Max: 0.0029
   Mean: 0.0006

10.3 Save Suitability Maps as GeoTIFF (Optional)

We can export the suitability maps as GeoTIFF files for use in GIS software:

# Create output directory for suitability maps
output_suitability_dir = 'data/tutorial/suitability_maps'
os.makedirs(output_suitability_dir, exist_ok=True)

# Save suitability maps for top 10 species
print("💾 Saving suitability maps as GeoTIFF...")

for sp_idx in tqdm(top_species_indices[:10], desc="Saving"):
    sp_name = idx_to_species[sp_idx]
    # Clean species name for filename
    sp_name_clean = sp_name.replace(' ', '_').replace('.', '')

    suitability = suitability_maps[sp_idx]

    # Define output path
    output_path = os.path.join(output_suitability_dir, f'suitability_{sp_name_clean}.tif')

    # Write GeoTIFF
    with rasterio.open(
        output_path, 'w',
        driver='GTiff',
        height=raster_height,
        width=raster_width,
        count=1,
        dtype=np.float32,
        crs=raster_crs_map,
        transform=raster_transform_map,
        nodata=np.nan
    ) as dst:
        dst.write(suitability, 1)

# Also save the species richness map
richness_path = os.path.join(output_suitability_dir, 'predicted_species_richness.tif')
with rasterio.open(
    richness_path, 'w',
    driver='GTiff',
    height=raster_height,
    width=raster_width,
    count=1,
    dtype=np.float32,
    crs=raster_crs_map,
    transform=raster_transform_map,
    nodata=np.nan
) as dst:
    dst.write(predicted_richness.astype(np.float32), 1)

print(f"\n✅ Saved {len(top_species_indices[:10]) + 1} GeoTIFF files to: {output_suitability_dir}")
print(f"   - 10 species suitability maps")
print(f"   - 1 predicted species richness map")

💾 Saving suitability maps as GeoTIFF...

Saving:   0%|          | 0/10 [00:00<?, ?it/s]Saving: 100%|██████████| 10/10 [00:00<00:00, 36.44it/s]


✅ Saved 11 GeoTIFF files to: data/tutorial/suitability_maps
   - 10 species suitability maps
   - 1 predicted species richness map

🎯 Final Summary

In this tutorial, we have successfully:

1. ✅ Loaded and explored GBIF biodiversity data from Costa Rica
2. ✅ Visualized species occurrences on interactive maps
3. ✅ Cropped environmental rasters (WorldClim bioclimatic variables)
4. ✅ Built training tensors (X and y)
5. ✅ Implemented spatial block split for train/validation
6. ✅ Trained a DeepMaxent model with the custom loss function
7. ✅ Evaluated model performance using AUC metrics
8. ✅ Generated suitability maps by applying the model to rasters
9. ✅ Exported results as GeoTIFF files

📊 Key Results

Metric	Value
Number of species	See training output
Training samples	See training output
Validation AUC	See training output
Suitability maps generated	10 species + richness map

🚀 Next Steps

• Compare suitability predictions with independent validation data
• Generate future climate projections using climate scenarios
• Apply ensemble methods for uncertainty quantification
• Compare with MaxEnt or other SDM approaches

---

Tutorial created for the DeepMaxent project - Species Distribution Modeling with Deep Learning
