Extracting Environmental Predictors for Biodiversity Modelling
This vignette shows how to attach environmental predictor data to the analysis grid. These predictors provide the environmental context needed for modelling spatial patterns in biodiversity, compositional turnover, and species richness.
To keep the example reproducible and quick to run, we use a small set of example objects bundled with dissmapr. The setup chunk below loads the required packages, reads the bundled data snapshot, and unpacks the spatial, species, and raster objects needed for the environmental-data workflow.
# Load the packages used in this vignette.library(dissmapr)library(ggplot2)library(dplyr)
# Load the bundled example data snapshot.# This keeps the vignette reproducible and avoids requiring external downloads.inputs = readRDS(system.file("extdata", "dissmapr_vignettes.rds", package = "dissmapr"))
# Unpack the example objects used throughout this vignette:# Unpack the bundled example data into named objects used below.rsa = inputs$rsa # South Africa boundarygrid_sf = inputs$grid_sf # Analysis grid as an sf objectgrid_spp = inputs$grid_spp # Grid-level species dataeffRich_r = terra::unwrap(inputs$effRich_r) # Effective richness rastergrid_spp_pa = inputs$grid_spp_pa # Presence-absence species datasp_cols = inputs$sp_cols # Species column namesgrid_r = terra::rast(system.file("extdata", "grid_r.tif", package = "dissmapr")) # Raster template1. Generate site by environment matrix using get_enviro_data()
Section titled “1. Generate site by environment matrix using get_enviro_data()”Spatial models are most informative when each sampling unit couples a biological response (in this example, sampling effort and species richness) with the same suite of environmental predictors.
get_enviro_data() attaches environmental predictors to each grid cell via a six-stage routine:
o buffer the analysis lattice,
o retrieve or read the required rasters,
o crop them to the buffered extent,
o extract raster values at every grid-cell centroid,
o interpolate any missing data gaps, and
o append the finished covariate set to the grid summary.
The subsections below implement this workflow:
- Download and sample 19 WorldClim bioclim variables: obtains the 5-arc-min (~10 km) WorldClim v2.1, returns
biostack viageodata, crops it, and attaches climate values to every centroid. - Bind climate, effort, and richness into one raster stack: combines √-scaled effort (
obs_sum), √-scaled richness (spp_rich), and the 19 climate layers into a singleSpatRastaligned to the 0.5° grid. - Inspect the extracted covariates: produces a quick map (e.g. mean annual temperature) and previews the data to verify alignment and plausibility.
- Assemble a modelling matrix: consolidates coordinates, effort, richness, and all climate predictors into a tidy data frame (
grid_env) ready for statistical modelling. - Optional >> Reproject centroids for metric-space analyses: converts centroid coordinates from
WGS-84(EPSG:4326) to aAlbers Equal-Areaprojection (EPSG:9822) when analyses require distances in metres.
Download and sample 19 WorldClim bioclim variables
Fetch the 5-arc-min (~10 km) bioclim stack via geodata package and attach values to every centroid.
# Retrieve 19 bioclim layers (≈10-km, WorldClim v2.1) for all grid centroidsdata_path = system.file("extdata", package = "dissmapr") # cache folder for rastersenviro_list = dissmapr::get_enviro_data( data = grid_spp, # centroids + obs_sum + spp_rich buffer_km = 10, # pad the AOI slightly source = "geodata", # WorldClim/SoilGrids interface var = "bio", # bioclim variable set res = 5, # 5-arc-min ≈ 10 km path = data_path, sp_cols = 7:ncol(grid_spp), # ignore species columns ext_cols = c("obs_sum", "spp_rich") # carry effort & richness through)
# Quick checksstr(enviro_list, max.level = 1)#> List of 3#> $ env_rast:S4 class 'SpatRaster' [package "terra"]#> $ sites_sf: sf [415 × 2] (S3: sf/tbl_df/tbl/data.frame)#> ..- attr(*, "sf_column")= chr "geometry"#> ..- attr(*, "agr")= Factor w/ 3 levels "constant","aggregate",..: NA#> .. ..- attr(*, "names")= chr "grid_id"#> $ env_df : tibble [415 × 24] (S3: tbl_df/tbl/data.frame)
# (Optional) Assign concise layer names for readability# Find names here https://www.worldclim.org/data/bioclim.htmlnames_env = c("temp_mean","mdr","iso","temp_sea","temp_max","temp_min", "temp_range","temp_wetQ","temp_dryQ","temp_warmQ", "temp_coldQ","rain_mean","rain_wet","rain_dry", "rain_sea","rain_wetQ","rain_dryQ","rain_warmQ","rain_coldQ")names(enviro_list$env_rast) = names_env
# (Optional) Promote frequently-used objectsenv_r = enviro_list$env_rast # cropped climate stackenv_df = enviro_list$env_df # site × environment data-frame
# Quick checksenv_r#> class : SpatRaster#> size : 154, 195, 19 (nrow, ncol, nlyr)#> resolution : 0.08333333, 0.08333333 (x, y)#> extent : 16.66667, 32.91667, -34.91667, -22.08333 (xmin, xmax, ymin, ymax)#> coord. ref. : lon/lat WGS 84 (EPSG:4326)#> source(s) : memory#> names : temp_mean, mdr, iso, temp_sea, temp_max, temp_min, ...#> min values : 5.158916, 5.891667, 45.320835, 143.07431, 14.832, -6.284, ...#> max values : 24.796417, 18.659584, 67.097374, 701.333496, 38.518002, 13.8, ...dim(env_df); head(env_df)#> [1] 415 24#> # A tibble: 6 × 24#> grid_id centroid_lon centroid_lat bio01 bio02 bio03 bio04 bio05 bio06 bio07 bio08 bio09 bio10#> <chr> <dbl> <dbl> <dbl> <dbl> <dbl> <dbl> <dbl> <dbl> <dbl> <dbl> <dbl> <dbl>#> 1 1026 28.8 -22.3 21.9 14.5 55.7 427. 32.4 6.44 26.0 26.1 16.1 26.1#> 2 1027 29.2 -22.3 21.8 14.6 53.9 453. 33.0 5.87 27.1 26.5 15.6 26.5#> 3 1028 29.7 -22.3 21.5 14.0 56.3 393. 31.7 6.80 24.9 25.5 16.1 25.5#> 4 1029 30.3 -22.3 23.0 13.7 57.8 358. 32.8 9.14 23.7 26.6 18.1 26.6#> 5 1030 30.8 -22.3 23.6 13.8 59.6 334. 33.5 10.3 23.2 27.0 19.0 27.0#> 6 1031 31.3 -22.3 24.6 14.6 61.7 332. 34.8 11.0 23.8 27.9 20.0 27.9#> # ℹ 11 more variables: bio11 <dbl>, bio12 <dbl>, bio13 <dbl>, bio14 <dbl>, bio15 <dbl>,#> # bio16 <dbl>, bio17 <dbl>, bio18 <dbl>, bio19 <dbl>, obs_sum <dbl>, spp_rich <dbl>get_enviro_data() buffered the grid centroids by 10 km, fetched the requested rasters, cropped them, extracted values at each centroid, filled isolated NAs, and merged the results with obs_sum and spp_rich.
2. Bind climate, effort, and richness into one raster stack
Section titled “2. Bind climate, effort, and richness into one raster stack”Fuse the √-scaled sampling‐effort (obs_sum) and richness (spp_rich) layers with the 19 bioclim rasters into a single, co-registered SpatRast. A unified stack ensures that all predictors share the same grid, streamlining downstream map algebra, multivariate modelling, and spatial cross-validation.
# --- Rebuild rasters inside the vignette ---effRich_r = sqrt( grid_r[[c("obs_sum", "spp_rich")]])
# Use first layer as template explicitlytemplate = effRich_r[[1]]
env_resampled = terra::resample( env_r, template, method = "bilinear")
env_effRich_r = c(effRich_r, env_resampled)
# --- Safe plotting ---old_par = par(no.readonly = TRUE)on.exit(par(old_par), add = TRUE)
layout(matrix(1:4, nrow = 2))

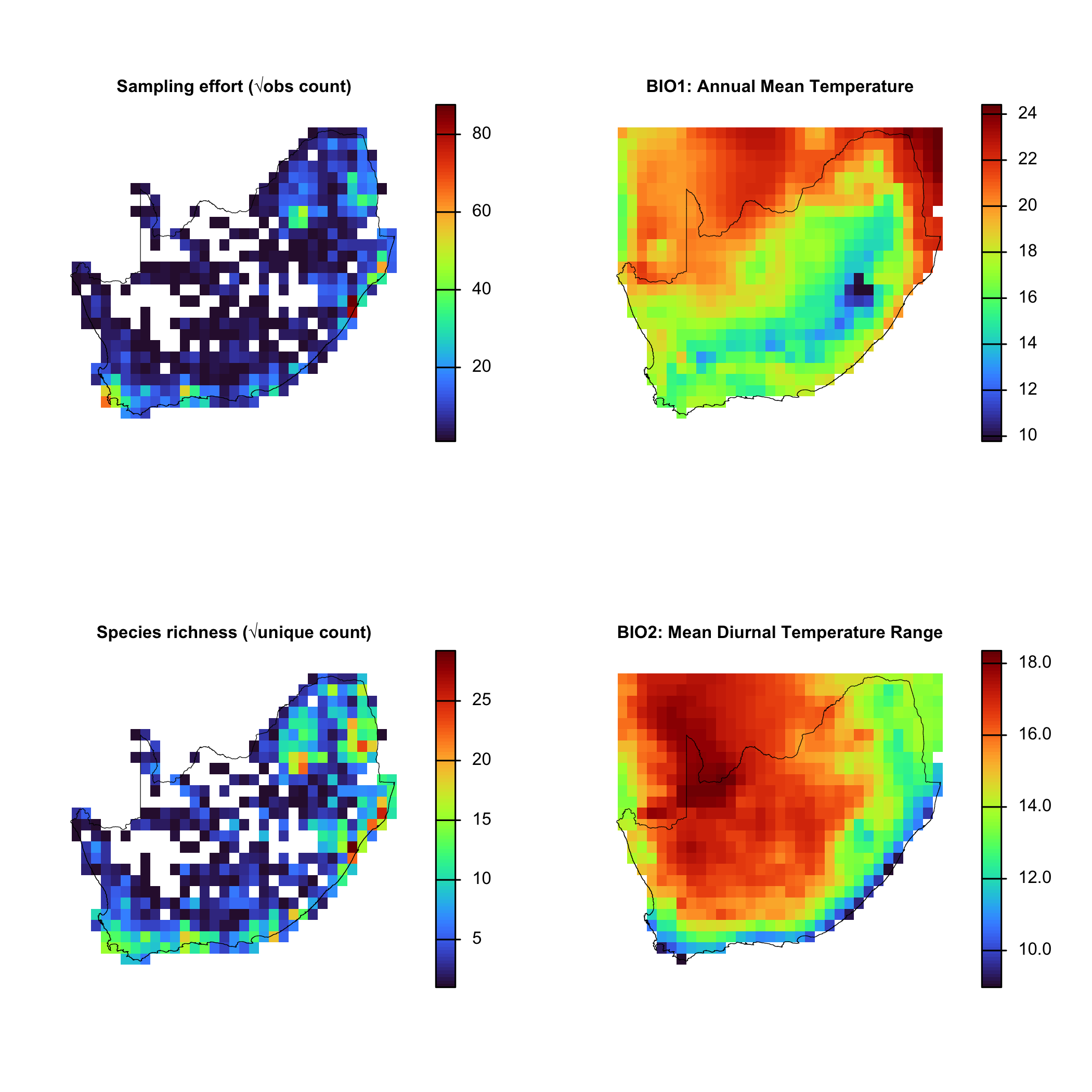

titles = c( "Sampling effort (√obs count)", "Species richness (√unique count)", "BIO1: Annual Mean Temperature", "BIO2: Mean Diurnal Temperature Range")
for (i in 1:4) { terra::plot( env_effRich_r[[i]], col = viridisLite::turbo(100), type = "continuous", colNA = NA_character_, axes = FALSE, main = titles[i], cex.main = 0.8 ) terra::plot(terra::vect(rsa), add = TRUE, border = "black", lwd = 0.4)}
3. Inspect the extracted covariates
Section titled “3. Inspect the extracted covariates”Environmental data were linked to grid centroids using get_enviro_data(), now visualise the spatial variation in selected climate variables to check results.
# Make column headers explicit# names(env_df)[1:5] = c("grid_id","centroid_lon","centroid_lat","obs_sum","spp_rich")
# Simple check of dimensions and first rowsdim(env_df)#> [1] 415 24head(env_df[, 1:6])#> # A tibble: 6 × 6#> grid_id centroid_lon centroid_lat bio01 bio02 bio03#> <chr> <dbl> <dbl> <dbl> <dbl> <dbl>#> 1 1026 28.8 -22.3 21.9 14.5 55.7#> 2 1027 29.2 -22.3 21.8 14.6 53.9#> 3 1028 29.7 -22.3 21.5 14.0 56.3#> 4 1029 30.3 -22.3 23.0 13.7 57.8#> 5 1030 30.8 -22.3 23.6 13.8 59.6#> 6 1031 31.3 -22.3 24.6 14.6 61.7

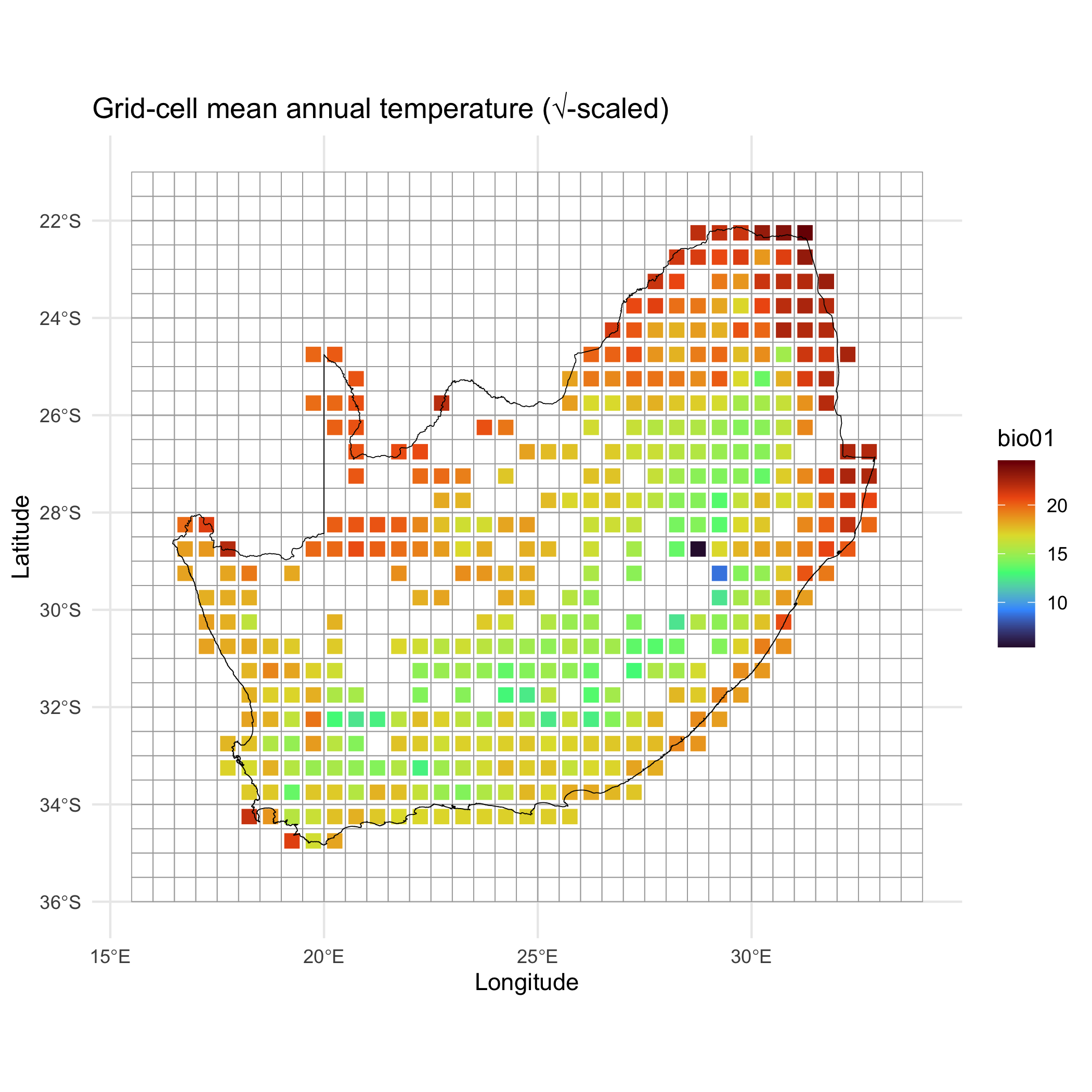

# Quick map of mean annual temperature (√-scaled bubble size)ggplot() + geom_sf(data = grid_sf, fill = NA, colour = "darkgrey", alpha = 0.4) + geom_point(data = env_df, aes(x = centroid_lon, y = centroid_lat, colour = bio01), shape = 15, size = 3) + # scale_size_continuous(range = c(2,6)) + scale_colour_viridis_c(option = "turbo") + geom_sf(data = rsa, fill = NA, colour = "black") + theme_minimal() + labs(title = "Grid-cell mean annual temperature (√-scaled)", x = "Longitude", y = "Latitude")
Goal of this plot is to quickly check that the environmental predictors (e.g. bio01 >> mean annual temperature) line up with the 0.5° grid.
4. Assemble the modelling matrix grid_env
Section titled “4. Assemble the modelling matrix grid_env”Compile a site × environment data frame (grid_env) in which each 0.5° cell contributes one row containing centroid coordinates, √-scaled sampling effort, species richness, and the 19 bioclim predictors. The resulting matrix is immediately usable for GLMs, GAMs, machine-learning, ordination, and β-diversity analyses.
# Build the final site × environment tablegrid_env = env_df %>% dplyr::select(grid_id, centroid_lon, centroid_lat, obs_sum, spp_rich, dplyr::everything())
str(grid_env, max.level = 1)#> tibble [415 × 24] (S3: tbl_df/tbl/data.frame)head(grid_env)#> # A tibble: 6 × 24#> grid_id centroid_lon centroid_lat obs_sum spp_rich bio01 bio02 bio03 bio04 bio05 bio06 bio07#> <chr> <dbl> <dbl> <dbl> <dbl> <dbl> <dbl> <dbl> <dbl> <dbl> <dbl> <dbl>#> 1 1026 28.8 -22.3 3 2 21.9 14.5 55.7 427. 32.4 6.44 26.0#> 2 1027 29.2 -22.3 41 31 21.8 14.6 53.9 453. 33.0 5.87 27.1#> 3 1028 29.7 -22.3 10 10 21.5 14.0 56.3 393. 31.7 6.80 24.9#> 4 1029 30.3 -22.3 7 7 23.0 13.7 57.8 358. 32.8 9.14 23.7#> 5 1030 30.8 -22.3 6 6 23.6 13.8 59.6 334. 33.5 10.3 23.2#> 6 1031 31.3 -22.3 107 76 24.6 14.6 61.7 332. 34.8 11.0 23.8#> # ℹ 12 more variables: bio08 <dbl>, bio09 <dbl>, bio10 <dbl>, bio11 <dbl>, bio12 <dbl>,#> # bio13 <dbl>, bio14 <dbl>, bio15 <dbl>, bio16 <dbl>, bio17 <dbl>, bio18 <dbl>, bio19 <dbl>5. Reproject centroids for metric-space analyses** using sf::st_transform()[OPTIONAL]
Section titled “5. Reproject centroids for metric-space analyses** using sf::st_transform()[OPTIONAL]”Certain analyses (e.g. spatial clustering, variogram modelling) require coordinates in metres rather than degrees.
The snippet below converts the centroid layer to an Albers Equal-Area projection.
# Convert the centroid columns to an sf objectcentroids_sf = sf::st_as_sf( grid_env, coords = c("centroid_lon", "centroid_lat"), crs = 4326, # WGS-84 remove = FALSE)
# Reproject to Albers Equal Area (EPSG 9822)centroids_aea = sf::st_transform(centroids_sf, 9822)
# Append projected X–Y back onto the data-framegrid_env = cbind( grid_env, sf::st_coordinates(centroids_aea) |> as.data.frame() |> setNames(c("x_aea", "y_aea")) # rename within the pipeline)names(grid_env)#> [1] "grid_id" "centroid_lon" "centroid_lat" "obs_sum" "spp_rich" "bio01"#> [7] "bio02" "bio03" "bio04" "bio05" "bio06" "bio07"#> [13] "bio08" "bio09" "bio10" "bio11" "bio12" "bio13"#> [19] "bio14" "bio15" "bio16" "bio17" "bio18" "bio19"#> [25] "x_aea" "y_aea"head(grid_env[, c("grid_id","centroid_lon","centroid_lat","x_aea","y_aea")])#> grid_id centroid_lon centroid_lat x_aea y_aea#> 1 1026 28.75 -22.25004 6392274 -6836200#> 2 1027 29.25 -22.25004 6480542 -6808542#> 3 1028 29.75 -22.25004 6568648 -6780369#> 4 1029 30.25 -22.25004 6656587 -6751682#> 5 1030 30.75 -22.25004 6744357 -6722482#> 6 1031 31.25 -22.25004 6831955 -6692770At this point every grid cell has species metrics, climate predictors, and is optionally projected into metre coordinates, all in a single tidy object.
6. Diagnose and mitigate collinearity with rm_correlated()
Section titled “6. Diagnose and mitigate collinearity with rm_correlated()”Highly inter-correlated predictors inflate variance, bias coefficient estimates, and complicate ecological inference.

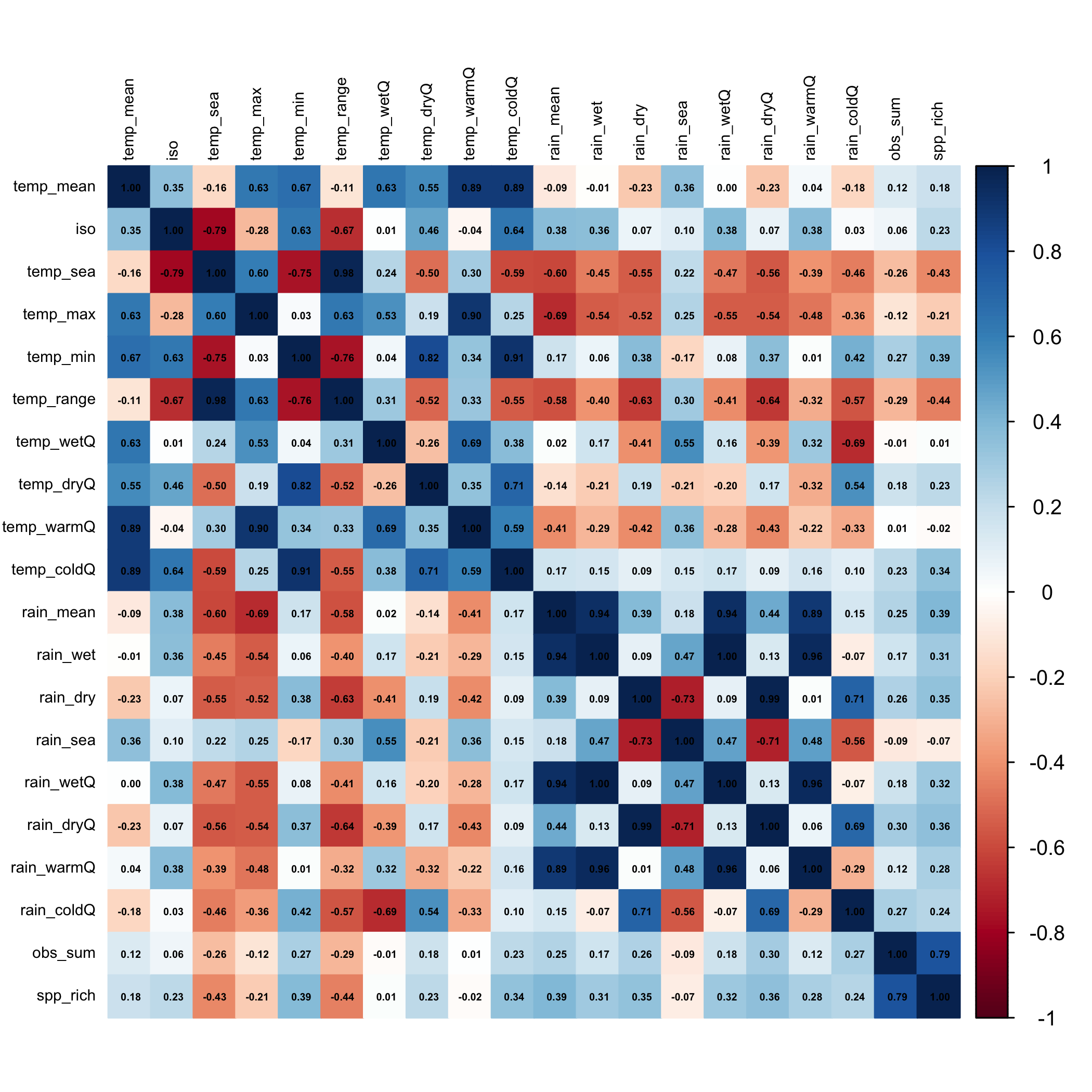

rm_correlated() screens the environmental matrix for pairwise correlations that exceed a user-defined threshold (here |r| > 0.70), then iteratively prunes the variable with the highest average absolute correlation. The routine
- Computes a Pearson (default) Correlation matrix for the supplied columns;
- Ranks variables by their mean absolute correlation;
- Discards the worst offender, recomputes the matrix, and repeats until all remaining pairs lie below the threshold;
- Optional >> displays the final Correlation heat-map for visual QC.
The result is a reduced predictor set that retains maximal information while minimising multicollinearity.
# (Optional) Rename BIOnames(env_df) = c("grid_id", "centroid_lon", "centroid_lat", names_env, "obs_sum", "spp_rich")
# Run the filter and compare dimensions# Filter environmental predictors for |r| > 0.70env_vars_reduced = dissmapr::rm_correlated( data = env_df[, c(4, 6:24)], # drop ID + coord columns cols = NULL, # infer all numeric cols threshold = 0.70, plot = TRUE # show heat-map of retained vars)
# Before vs afterc(original = ncol(env_df[, c(4, 6:24)]), reduced = ncol(env_vars_reduced))#> original reduced#> 20 7env_vars_reduced now contains a decorrelated subset of climate predictors suitable for stable GLMs, GAMs, machine-learning, or ordination workflows.
